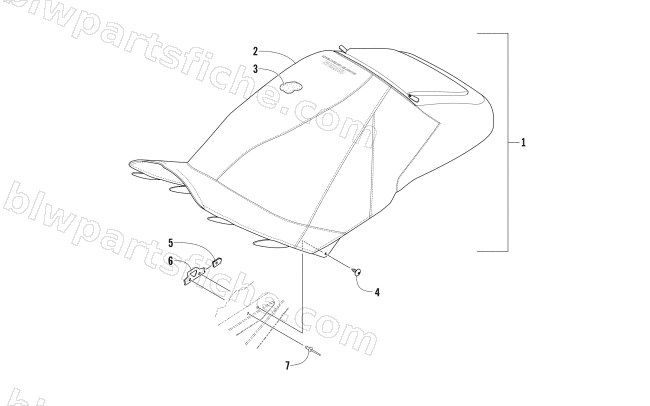

2016 Arctic Cat M 8000 LTD — SEAT ASSEMBLY
2016 M 8000 LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-936 | SEAT,ASSY-M (LTD GRN L/W) | 1 | $735.95 | |
| 1 | 5706-932 | SEAT,ASSY-M (LTD BLK L/W) | 1 | $735.95 | |
| 2 | 5706-940 | COVER,SEAT-M (LTD GRN L/W) | 1 | $509.95 | |
| 2 | 5706-938 | COVER,SEAT-M (LTD BLK L/W) | 1 | $509.95 | |
| 3 | 0717-213 | FOAM,SEAT-MTN (.48 RATIO @ 2.7 75-80ILD) | 1 | $164.95 | |
| 4 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 5 | 1623-052 | NUT,U | 1 | $0.95 | |
| 6 | 6606-704 | PLATE,RETAINER-SEAT | 1 | $2.47 | |
| 7 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 |
