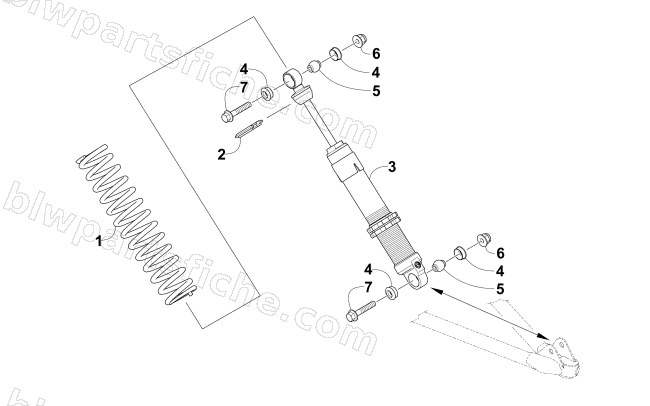

2016 Arctic Cat M 8000 SE 153 — FRONT SHOCK ABSORBER ASSEMBLY
2016 M 8000 SE 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 4 | 3603-260 | BUSHING,SHOCK-SPHERICAL-BLK | 1 | $3.44 | |
| 5 | 3603-261 | AXLE,SHOCK - SPHERICAL | 1 | $16.49 | |
| 6 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 | |
| 7 | 8413-850 | SCREW,CAP-HFH M8X1.25X50 CL10.9 SILV | 1 | $3.44 |
