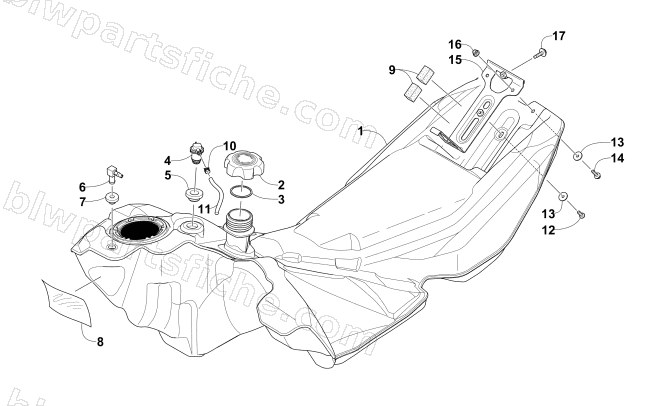

GAS TANK ASSEMBLY
2016 M 9000 SNO PRO 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-016 | TANK,FUEL-TURBO-SP ASSY | 1 | $390.95 | |
| 2 | 2670-048 | CAP,FUEL TANK-91 OCTANE MINIMUM | 1 | $13.73 | |
| 4 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 5 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 6 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 7 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 8 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 9 | 0617-667 | FOAM,GAS TANK | 1 | $1.92 | |
| 10 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 11 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 11 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 12 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 13 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 14 | 8410-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 RIE BLK | 1 | $0.95 | |
| 15 | 5706-098 | BRKT,MTG-SEAT LATCH-WELDT | 1 | $41.95 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 17 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 |
