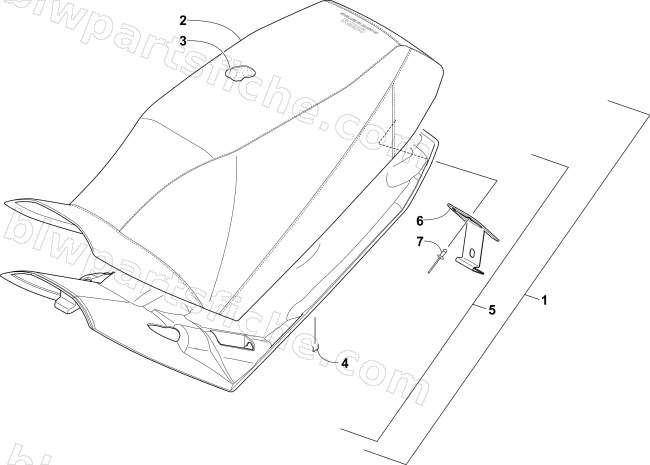

2016 Arctic Cat M 9000 SNO PRO 162 — SEAT ASSEMBLY
2016 M 9000 SNO PRO 162
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0717-203 | FOAM,SEAT-MTN (.48 RATIO @ 3.8 75-81ILD) | 1 | $164.95 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 5 | 5706-241 | BASE,SEAT-MC-W/SEAT LATCH HOOK | 1 | $133.95 | |
| 6 | 6606-452 | HOOK,SEAT LATCH | 1 | $17.87 | |
| 7 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 |
