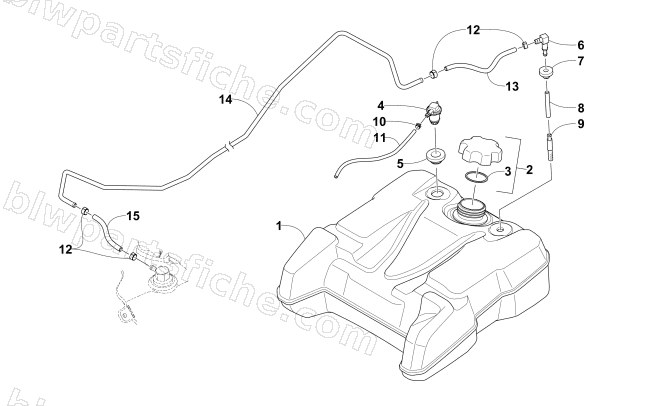

2016 Arctic Cat PANTERA 7000 LTD EARLY BUILD — AUXILIARY GAS TANK ASSEMBLY
2016 PANTERA 7000 LTD EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-085 | TANK,FUEL-SADDLE-ASSY | 1 | $552.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 4 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 5 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 6 | 2670-020 | ELBOW, GAS TANK 90 | 1 | $17.87 | |
| 7 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 8 | 0610-814 | HOSE,GREEN -.187 X .312 X 50 FEET | 1 | $239.95 | |
| 9 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 10 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 11 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 12 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 13 | 0610-971 | HOSE,FUEL-IN TANK-10 FT | 1 | $267.95 | |
| 14 | 2670-445 | FUEL LINE,STEEL-SADDLE TANK | 1 | $82.95 | |
| 15 | 0610-970 | HOSE,COOLANT-5/16X.510-25FT | 1 | $69.95 |
