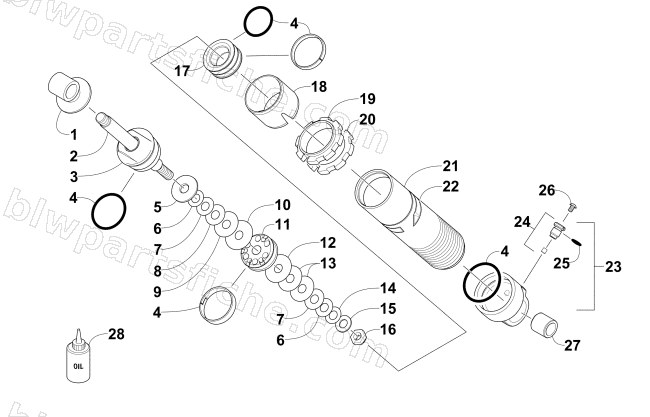

2016 Arctic Cat PANTERA 7000 LTD — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2016 PANTERA 7000 LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-330 | R/B 2704-691 | 1 | $137.95 | |
| 1 | 3604-797 | EYELET,SHOCK-FRT ARM-FORGED | 1 | $92.95 | |
| 2 | 3604-831 | SHAFT, CHROME - 12.66MM X 166 MM | 1 | $159.95 | |
| 3 | 4604-125 | BEARING,ENDCAP-SHORT-W/BLEED ASSY-NEW | 1 | $49.95 | |
| 4 | 4604-121 | SEAL/BEARING - REBUILD KIT-37MM | 1 | $58.95 | |
| 5 | 3604-789 | WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK | 1 | $3.95 | |
| 6 | 3603-096 | VALVE,SHOCK-17.78 OD X 0.3 (9.6 ID) | 1 | $5.95 | |
| 7 | 3603-105 | VALVE,SHOCK-20.32 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 8 | 3603-115 | VALVE,SHOCK-22.86 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 9 | 3603-124 | VALVE,SHOCK-25.4 OD X 0.2 (9.6 ID) | 1 | $6.95 | |
| 10 | 3603-185 | VALVE,SHOCK-33.02 DIA X 0.25 (9.6 ID) | 1 | $5.95 | |
| 11 | 3604-790 | PISTON, 37 BORE-2.35 ORIFICE | 1 | $33.95 | |
| 12 | 3603-174 | VALVE,SHOCK-31.75 OD X .2 (9.6 ID) | 1 | $6.95 | |
| 13 | 3603-125 | VALVE,SHOCK-25.4 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 14 | 3603-095 | VALVE,SHOCK-17.78 OD X .25 (9.60 ID) | 1 | $5.95 | |
| 15 | 3604-775 | WASHER, BACKUP-15.8 OD X 2.4 X (9.6 ID) | 1 | $3.95 | |
| 16 | 3604-739 | NUT, HEX - 3/8"-24UNF | 1 | $4.95 | |
| 17 | 3604-772 | PISTON.FLOAT-ASSY | 1 | $35.95 | |
| 18 | 3604-773 | GUIDE,SPRING-ALUM BODY | 1 | $32.95 | |
| 19 | 2603-014 | RING,PRELOAD LOCK-SHOULDERED | 1 | $53.95 | |
| 20 | 3604-779 | RING,PRELOAD LOCK | 1 | $45.95 | |
| 21 | 3604-830 | BODY, SHOCK-ALUM-37.20-155.7mm | 1 | $149.95 | |
| 22 | 1621-728 | DECAL,WARNING-HIGH PRESSURE SHOCK | 1 | $3.44 | |
| 23 | 2704-257 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 24 | 3604-751 | VALVE,PRESSURE-ASSY | 1 | $124.95 | |
| 26 | 3604-750 | SCREW.MACH-#8-32 X 5mm-SS | 1 | $2.47 | |
| 27 | 3604-906 | BEARING,SHOCK FRT ARM-25.45 X 22.4X18.54 | 1 | $5.09 | |
| 28 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
