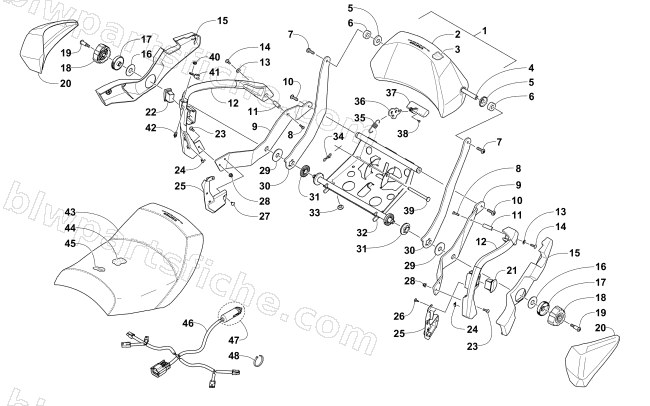

PASSENGER SEAT AND BACKREST ASSEMBLY
2016 PANTERA 7000 XT LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-950 | BACKREST-ASSY | 1 | $279.95 | |
| 2 | 5706-949 | COVER,BACKREST-PANTERA | 1 | $149.95 | |
| 3 | 0717-210 | FOAM,BACKREST(.44R@1.4) | 1 | $133.95 | |
| 4 | 6606-593 | AXLE,BACKREST | 1 | $24.77 | |
| 5 | 0723-003 | WASHER,CUP-PTD BLK | 1 | $9.59 | |
| 6 | 0616-547 | BLOCK,TENSION-BACKREST | 1 | $5.65 | |
| 7 | 8477-831 | SCREW,MACH-TSTRH M8X1.25X30 Z&BLK W/2353 | 1 | $12.35 | |
| 8 | 2623-073 | SCREW,MACH-TSFH M6X1.0X25 Z&B-W/2353 | 1 | $22.01 | |
| 9 | 5706-576 | BRKT,MOUNTING-HANDHOLD-RH-PTD BLK | 1 | $96.95 | |
| 9 | 5706-577 | BRKT,MOUNTING-HANDHOLD-LH-PTD BLK | 1 | $96.95 | |
| 10 | 8468-621 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/2353 | 1 | $1.09 | |
| 11 | 6606-678 | AXLE,HANDHOLD | 1 | $42.95 | |
| 12 | 6606-828 | HANDHOLD,RH-W/HANDWARMER | 1 | $132.95 | |
| 12 | 5606-085 | HAND HOLD, LH- W/HANDWARMER | 1 | $141.95 | |
| 14 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 15 | 6606-690 | COVER,BRKT-HANDHOLD-RH-MOLD BLK | 1 | $34.95 | |
| 15 | 6606-691 | COVER,BRKT-HANDHOLD-LH-MOLD BLK | 1 | $34.95 | |
| 16 | 1623-986 | SPACER-19X49X1.89 | 1 | $5.37 | |
| 17 | 6606-643 | TENSIONER,BACKREST | 1 | $2.61 | |
| 18 | 6606-644 | KNOB,TENSIONER | 1 | $5.37 | |
| 19 | 2623-072 | SCREW,SHOULDER-HSTRH-M8X1.25X44.1 W/2353 | 1 | $4.68 | |
| 20 | 6606-494 | DEFLECTOR,WIND-RH | 1 | $65.95 | |
| 20 | 6606-495 | DEFLECTOR,WIND-LH | 1 | $65.95 | |
| 21 | 0609-836 | SWITCH, HEATED SEAT | 1 | $73.95 | |
| 22 | 0609-835 | SWITCH, PASS-HAND WARMER | 1 | $69.95 | |
| 23 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 24 | 1623-703 | CLIP, SPEED-WIRE RETAINER | 1 | $2.33 | |
| 25 | 6606-866 | COVER,HARNESS-RH-MOLD BLK | 1 | $8.21 | |
| 25 | 6606-867 | COVER,HARNESS-LH-MOLD BLK | 1 | $8.21 | |
| 26 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 27 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 1623-758 | WASHER,RUBBER-17.9ID X 53.1OD X 3 THK | 1 | $2.47 | |
| 30 | 5706-578 | BRKT,BACKREST-RH-PTD BLK | 1 | $78.95 | |
| 30 | 5706-579 | BRKT,BACKREST-LH-PTD BLK | 1 | $78.95 | |
| 31 | 6606-642 | PLATE,LOCKING-SERRATED-OUTER | 1 | $8.21 | |
| 33 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 34 | 1623-546 | PIN,RETAINING-BOWTIE-1/2" | 1 | $1.37 | |
| 35 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 36 | 6606-928 | HOOK,LATCH-PASSENGER SEAT | 1 | $22.01 | |
| 37 | 6606-945 | HANDLE,LATCH-PASS SEAT | 1 | $12.35 | |
| 38 | 1623-978 | SCREW,SELF TAP-TSPH-ECOSYN-M4X10 | 1 | $1.31 | |
| 39 | 2623-097 | PIN,CLEVIS-10X110 | 1 | $5.09 | |
| 40 | 0609-944 | NUT,RETAINING-OUTLET | 1 | $3.16 | |
| 41 | 0609-945 | COVER,OUTLET-SHIELD | 1 | $2.47 | |
| 42 | 0609-940 | OUTLET,HEATED SHIELD | 1 | $34.95 | |
| 43 | 5706-877 | COVER,SEAT-PASSENGER | 1 | $382.95 | |
| 45 | 0609-869 | PAD, SEAT HEATER | 1 | $192.95 | |
| 47 | 0630-334 | PLUG,ACCESSORY-12VDC | 1 | $5.92 | |
| 48 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
