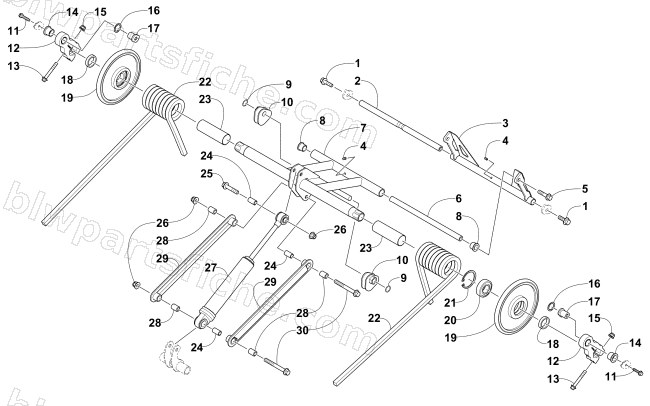

2016 Arctic Cat PANTERA 7000 XT LTD — REAR SUSPENSION REAR ARM ASSEMBLY
2016 PANTERA 7000 XT LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 2 | 3604-959 | AXLE, XBRC-HC-16.51X344.55 (M10X1.25) | 1 | $42.95 | |
| 3 | 2704-542 | ARM,REAR-BLK-FABR | 1 | $73.95 | |
| 4 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 5 | 8413-041 | SCREW,CAP-HFH M10X1.25X40 CL10.9 W/2353 | 1 | $3.16 | |
| 6 | 3604-440 | AXLE, IDLER ARM-LWR-M10X296.3 | 1 | $37.95 | |
| 7 | 2704-765 | ARM,IDLER-526.4-FABR | 1 | $333.95 | |
| 8 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 9 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 10 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 10 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 11 | 2623-002 | SCREW,CAP-HFH-M10X1.25X30-MPT-W/2353 | 1 | $3.71 | |
| 12 | 2704-477 | OFFSET ARM, IDLER-HEX 18.15- ASSY | 1 | $53.95 | |
| 13 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 14 | 3604-713 | BUSHING,GARLOCK-12FDU12 | 1 | $3.85 | |
| 15 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 16 | 3604-930 | WASHER,OFF SET ARM-.035"THK | 1 | $0.95 | |
| 17 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 18 | 3604-289 | SPACER,OFFSET ARM-HEX SHAFT | 1 | $2.06 | |
| 19 | 3604-264 | WHEEL,IDLER-7.12(NO INSERT/30mm BEARING) | 1 | $53.95 | |
| 20 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 21 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 22 | 2704-722 | SPRING,SUSP-.437SQ-75°-21LB-RH-PTD BLK | 1 | $126.95 | |
| 22 | 2704-723 | SPRING,SUSP-.437SQ-75°-21LB-LH-PTD BLK | 1 | $126.95 | |
| 23 | 3604-288 | SLEEVE,SPRING-108mm | 1 | $3.44 | |
| 24 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 25 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 26 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 27 | 2704-683 | SHOCK, REAR ARM-406.5 | 1 | $137.95 | |
| 28 | 3604-330 | AXLE, LINK-REAR SHOCK-M10 | 1 | $2.47 | |
| 29 | 0704-929 | LINK, REAR SHOCK-13.50-PAINTED | 1 | $46.95 | |
| 30 | 8408-090 | SCREW,CAP-HFH M10X1.25X90 CL8.8 Z&Y | 1 | $3.85 |
