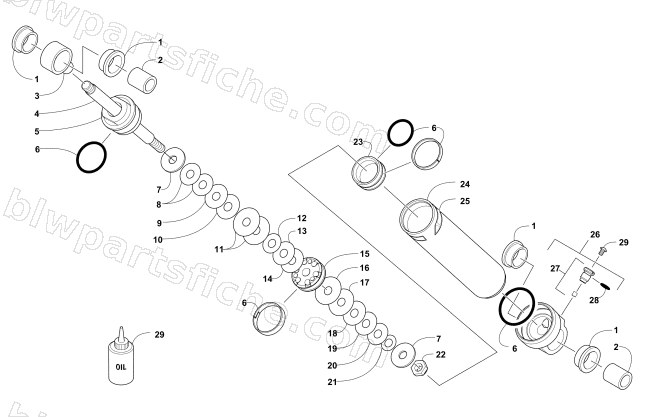

REAR SUSPENSION REAR ARM SHOCK ABSORBER

2016 PANTERA 7000 XT LTD

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
0	2704-683	SHOCK, REAR ARM-406.5	1	$137.95
1	3604-738	BUSHING,REAR SHOCK	1	$17.87
2	3604-737	SLEEVE - 20.65 OD X 14.5 ID X 24.2	1	$12.35
3	3604-796	EYELET,REAR ARM-FORGED	1	$89.95
4	3604-760	SHAFT,CHROME-12.66MM X 204.5MM	1	$105.95
5	4604-126	BEARING, ENDCAP - LONG - W/BLEED ASSY	1	$49.95
6	4604-121	SEAL/BEARING - REBUILD KIT-37MM	1	$58.95
7	3604-789	WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK	1	$3.95
8	3603-115	VALVE,SHOCK-22.86 OD X .25 (9.6 ID)	1	$6.95
9	3603-125	VALVE,SHOCK-25.4 OD X .25 (9.6 ID)	1	$6.95
10	3603-145	VALVE,SHOCK-27.94 OD X .25 (9.6 ID)	1	$6.95
11	3603-175	VALVE,SHOCK-31.75 OD X .25 (9.6 ID)	1	$6.95
12	3603-122	VALVE,SHOCK-25.4 OD X .15 (9.6ID)	1	$6.95
13	3603-144	VALVE,SHOCK-27.94 OD X 0.2 (9.6 ID)	1	$6.95
14	3603-185	VALVE,SHOCK-33.02 DIA X 0.25 (9.6 ID)	1	$5.95
15	2603-997	PISTON, 37 BORE-1.70 ORIFICE	1	$40.95
17	3603-146	VALVE,SHOCK-27.94 OD X 0.3 (9.6 ID)	1	$6.95
18	3603-126	VALVE, SHOCK-25.4 OD X .3 (9.6 ID)	1	$5.95
19	3603-117	VALVE,SHOCK-22.86 OD X 0.4 (9.6 ID)	1	$2.95
20	3603-107	VALVE,SHOCK-20.32 OD X 0.4 (9.6 ID)	1	$5.95
21	3603-097	VALVE,SHOCK-17.78 OD X 0.4 (9.6 ID)	1	$2.95
22	3604-739	NUT, HEX - 3/8"-24UNF	1	$4.95
23	3604-772	PISTON.FLOAT-ASSY	1	$35.95
25	1621-728	DECAL,WARNING-HIGH PRESSURE SHOCK	1	$3.44
26	2704-257	BODY,CAP-ALUM BODY-ASSY	1	$164.95
27	3604-751	VALVE,PRESSURE-ASSY	1	$124.95
29	3604-750	SCREW.MACH-#8-32 X 5mm-SS	1	$2.47
30	5639-530	SEMI-SYN SHOCK OIL-1 QUART	1	$26.95
