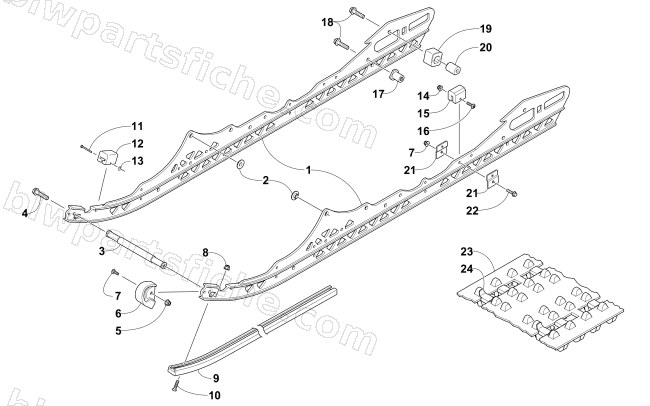

2016 Arctic Cat XF 7000 CROSS-TOUR — SLIDE RAIL AND TRACK ASSEMBLY (Early Build)
2016 XF 7000 CROSS-TOUR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-868 | SUSPENSION,REAR-CTOUR-BLK-MFG ASSY | 1 | $5,291.95 | |
| 1 | 3604-685 | RAIL,SUSP-146"-TOUR-MACH | 1 | $238.95 | |
| 2 | 3604-266 | INSERT,RAIL-M10 X 25 | 1 | $3.30 | |
| 3 | 3604-679 | AXLE,XBRC/LMTR-19.94X222.25(M8X1.25) HP | 1 | $74.95 | |
| 4 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 6 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 7 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 8 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 9 | 3604-801 | WEARSTRIP,SLIDE RAIL-1392MM | 1 | $29.95 | |
| 10 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 11 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 12 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 13 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 14 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 15 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 16 | 8470-540 | SCREW,MACH-TSPNH M5X0.8X40 CL8.8 Z&Y | 1 | $1.37 | |
| 17 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 18 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 19 | 2604-545 | BLOCK, REAR ARM COUPLER | 1 | $13.73 | |
| 20 | 3604-291 | BUSHING,REAR ARM COUPLER-M10 | 1 | $12.35 | |
| 22 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 23 | 2602-512 | TRACK,RIPSAW-15X146X1.25-2.86P | 1 | $1,215.95 | |
| 24 | 2602-383 | CLIP,GUIDE | 1 | $4.26 |
