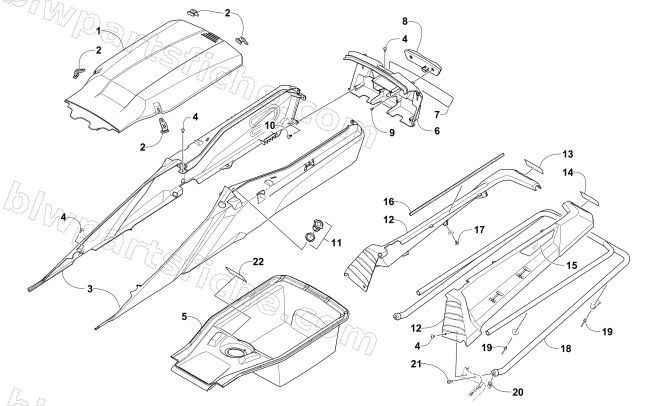

2016 Arctic Cat XF 7000 CROSSTOUR — REAR BUMPER, STORAGE, AND TAILLIGHT ASSEMBLY
2016 XF 7000 CROSSTOUR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-697 | LID,STORAGE BOX | 1 | $157.95 | |
| 2 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 3 | 6606-684 | FACIA,RACK-FRONT-RH-MOLD BLK | 1 | $133.95 | |
| 3 | 6606-685 | FACIA,RACK-FRONT-LH-MOLD BLK | 1 | $133.95 | |
| 4 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 8 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 9 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 10 | 2623-017 | SCREW,SELF-TAP-TSTRH-M6X12-BOSCRW | 1 | $1.37 | |
| 11 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 12 | 4718-346 | PANEL,REAR BUMPER-RH W/REFLECTORS | 1 | $62.95 | |
| 12 | 4718-347 | PANEL,REAR BUMPER-LH W/REFLECTORS | 1 | $62.95 | |
| 13 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 14 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 15 | 1621-394 | DECAL,REFLECTOR-RED-RH | 1 | $24.77 | |
| 15 | 1621-395 | DECAL,REFLECTOR-RED-LH | 1 | $24.77 | |
| 16 | 0617-742 | SEAL,FOAM-.187X.375X20.5 | 1 | $5.37 | |
| 17 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 18 | 1707-628 | BUMPER,REAR-TOUR-PTD BLK | 1 | $227.95 | |
| 19 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 20 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 21 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 22 | 2621-316 | DECAL,CAPACITY-STORAGE BOX | 1 | $12.35 |
