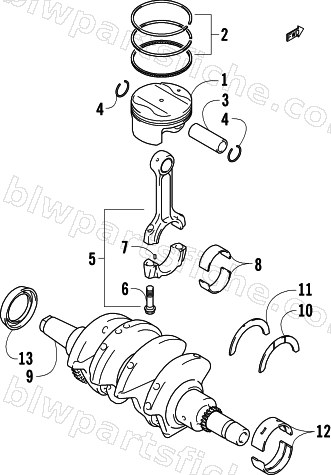

PISTON AND CRANKSHAFT ASSEMBLY
2016 XF 9000 CROSSTREK 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-778 | PISTON | 1 | $327.95 | |
| 2 | 3007-104 | RING SET,PISTON | 1 | $153.95 | |
| 3 | 3007-779 | PIN,PISTON | 1 | $57.95 | |
| 4 | 3008-585 | SNAP RING,M24 | 1 | $3.71 | |
| 5 | 3007-780 | CONNROD ASSY | 1 | $342.95 | |
| 6 | 3007-107 | BOLT,CONNROD | 1 | $22.01 | |
| 7 | 3007-108 | PIN,CONNROD | 1 | $3.30 | |
| 8 | 3007-109 | BEARING,CRANK PIN | 1 | $24.77 | |
| 8 | 3007-110 | BEARING,CRANK PIN | 1 | $24.77 | |
| 8 | 3007-111 | BEARING,CRANK PIN | 1 | $23.39 | |
| 8 | 3007-112 | BEARING,CRANK PIN | 1 | $24.77 | |
| 9 | 3007-781 | CRANKSHAFT ASSY | 1 | $3,080.95 | |
| 10 | 3007-114 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 11 | 3007-115 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 11 | 3007-116 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 11 | 3007-117 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 11 | 3007-119 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 11 | 3007-120 | BEARING,CRANK THRUST | 1 | $17.87 | |
| 12 | 3007-121 | BEARING,CRANKSHAFT | 1 | $20.63 | |
| 12 | 3007-122 | BEARING,CRANKSHAFT | 1 | $20.63 | |
| 12 | 3007-123 | BEARING,CRANKSHAFT | 1 | $20.63 | |
| 13 | 3007-124 | SEAL,CRANKSHAFT OIL(48X64X10.5) | 1 | $66.95 |
