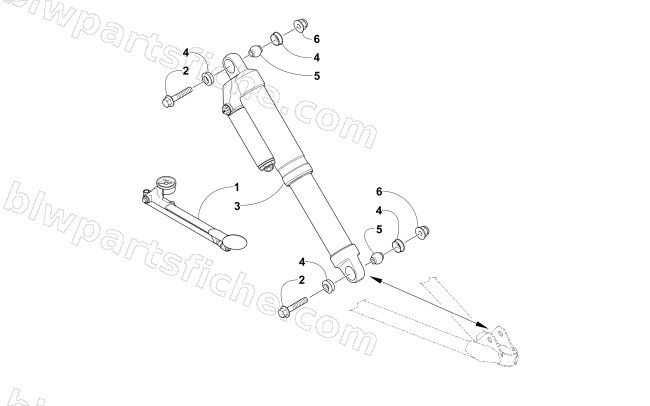

2016 Arctic Cat XF 9000 HIGH COUNTRY LTD 141 — FRONT SHOCK ABSORBER ASSEMBLY
2016 XF 9000 HIGH COUNTRY LTD 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0641-257 | PUMP,FOX FLOAT EVOL-DUAL GAUGE | 1 | $69.95 | |
| 2 | 8413-850 | SCREW,CAP-HFH M8X1.25X50 CL10.9 SILV | 1 | $3.44 | |
| 3 | 3703-536 | SHOCK,SKI-FLOAT 3 EVOL (40") | 1 | $746.95 | |
| 4 | 3603-260 | BUSHING,SHOCK-SPHERICAL-BLK | 1 | $3.44 | |
| 5 | 3603-261 | AXLE,SHOCK - SPHERICAL | 1 | $16.49 | |
| 6 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 |
