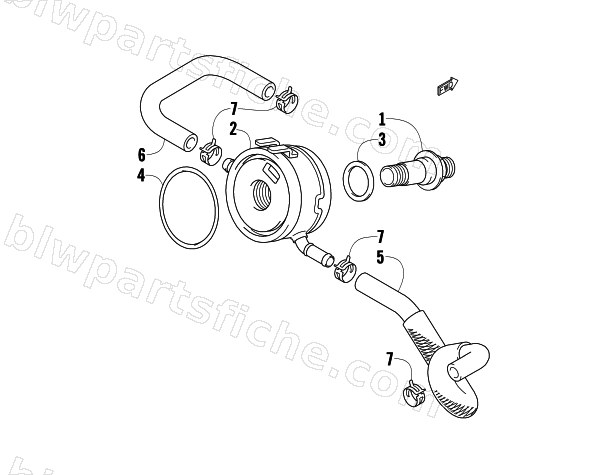

2016 Arctic Cat XF 9000 HIGH COUNTRY LTD 141 — OIL COOLER ASSEMBLY
2016 XF 9000 HIGH COUNTRY LTD 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-173 | BOLT,OIL COOLER UNION | 1 | $30.95 | |
| 2 | 3007-174 | COOLER ASSY,OIL | 1 | $785.95 | |
| 3 | 3007-175 | WASHER,OIL COOLER UNION (25X34X0.7) | 1 | $4.26 | |
| 4 | 3007-176 | O RING,OIL COOLER(ID:63.9,DD:3.1) | 1 | $16.49 | |
| 5 | 3007-177 | HOSE,OIL COOLER WATER INLET | 1 | $43.95 | |
| 6 | 3007-821 | HOSE,OIL COOLER WATER OUTLET | 1 | $20.63 | |
| 7 | 3423-424 | CLIP, AIRBOX | 1 | $5.78 |
