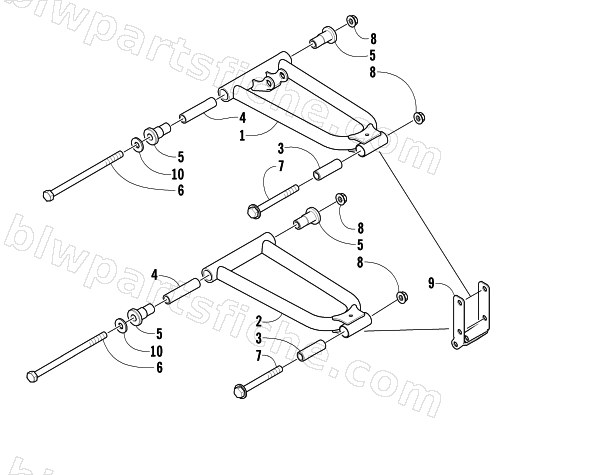

2016 Arctic Cat ZR 120 — A-ARM ASSEMBLY
2016 ZR 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-974 | A-ARM,UPPER-BLK-MACH | 1 | $160.95 | |
| 2 | 2703-975 | A-ARM,LOWER-BLK-MACH | 1 | $160.95 | |
| 3 | 1603-365 | AXLE, SUSPENSION | 1 | $4.26 | |
| 4 | 1603-394 | AXLE,INNER A-ARM | 1 | $9.59 | |
| 5 | 0605-451 | AXLE,PWD METAL-BELL CRANK (NO BEARING) | 1 | $5.09 | |
| 6 | 1623-983 | SCREW,CAP-HH 3/8-16 X 6.125 G5 Z&Y | 1 | $3.44 | |
| 7 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 8 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 1703-179 | BRKT,MTG-LOWER SHOCK-PTD BLK | 1 | $16.49 | |
| 10 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 |
