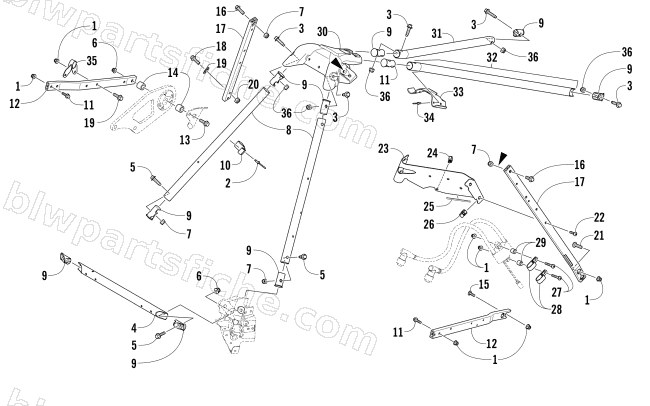

STEERING SUPPORT ASSEMBLY
2016 ZR 4000 LXR 129
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 2 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 3 | 1623-836 | SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z&Y-MPT | 1 | $2.75 | |
| 4 | 1707-582 | TUBE,SUPPORT-SHOCK TOWER-PTD BLK | 1 | $19.95 | |
| 5 | 1623-982 | SCREW,CAP-HFH M8X1.25X30 CL8.8-Z&Y-DPT | 1 | $1.23 | |
| 6 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 7 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 8 | 2707-497 | SPAR,UPR FRT-10MM PTD BLK | 1 | $24.77 | |
| 9 | 1607-680 | INSERT,UPPER SPAR-10MM MALE | 1 | $3.57 | |
| 10 | 1623-938 | CLAMP,THROTTLE/FUEL LINE | 1 | $2.47 | |
| 11 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 12 | 1607-212 | SPAR,SIDE-RH | 1 | $65.95 | |
| 12 | 1607-583 | SPAR,SIDE-LH | 1 | $68.95 | |
| 13 | 8408-885 | SCREW,CAP-HFH M8X1.25X85 CL8.8 Z&Y | 1 | $2.75 | |
| 14 | 0608-733 | SPACER,ENGINE MTG | 1 | $5.78 | |
| 15 | 1623-917 | BOLT,CARRIAGE-M6X1.0X20 Z&Y CL 8.8 | 1 | $0.95 | |
| 16 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 17 | 0607-252 | SUPPORT,STEERING-RH | 1 | $77.95 | |
| 17 | 1607-581 | SUPPORT,STEERING-LH | 1 | $45.95 | |
| 18 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 19 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 20 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 21 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 22 | 8476-626 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y W/2353 | 1 | $1.23 | |
| 23 | 0708-636 | BRTK,COIL MTG-FABR | 1 | $24.77 | |
| 24 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 | |
| 25 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 26 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 27 | 8468-640 | SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK | 1 | $0.68 | |
| 28 | 1623-762 | CLAMP,DOUBLE TUBE | 1 | $6.75 | |
| 29 | 1623-041 | SPACER, .325 X .540 X .500 | 1 | $1.92 | |
| 30 | 2707-491 | SUPPORT,STEERING-10MM-PTD BLK | 1 | $259.95 | |
| 31 | 2707-504 | SPAR,REAR-RH PTD BLK | 1 | $34.95 | |
| 32 | 6706-034 | BRKT,HOLDDOWN-SEATBASE-ASSY | 1 | $43.95 | |
| 33 | 6606-391 | BRKT,HOLDOWN-SEATBASE | 1 | $13.73 | |
| 34 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 35 | 1712-798 | BRKT,EXH MTG-SPAR-PTD BLK | 1 | $30.95 | |
| 36 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 |
