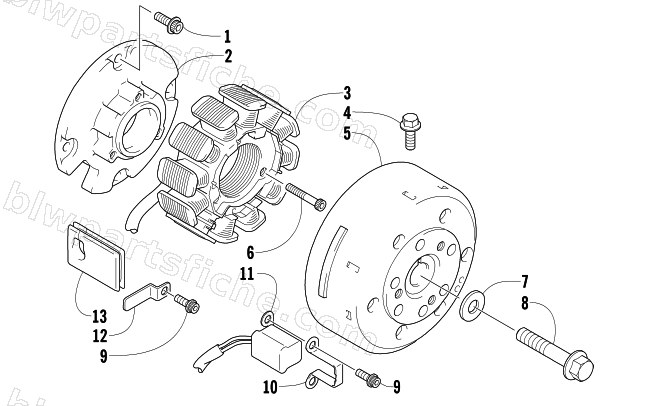

2016 Arctic Cat ZR 4000 RR 129 — MAGNETO
2016 ZR 4000 RR 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-449 | BOLT | 1 | $3.16 | |
| 2 | 3006-524 | BASE,STATOR | 1 | $165.95 | |
| 3 | 3007-701 | STATOR ASSY | 1 | $1,030.95 | |
| 4 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 5 | 3007-473 | FLYWHEEL | 1 | $1,115.95 | |
| 6 | 3007-450 | BOLT | 1 | $3.85 | |
| 7 | 3005-987 | WASHER | 1 | $5.95 | |
| 8 | 3006-476 | BOLT,M10X54 | 1 | $5.65 | |
| 9 | 3007-433 | BOLT | 1 | $3.16 | |
| 10 | 3003-972 | CLAMP | 1 | $24.77 | |
| 11 | 3006-453 | SENSOR,IGNITION | 1 | $279.95 | |
| 12 | 3005-960 | PLATE, MAGNETO LEAD WIRE | 1 | $6.95 | |
| 13 | 3005-775 | GROMMET, MAGNETO LEAD WIRE | 1 | $19.25 |
