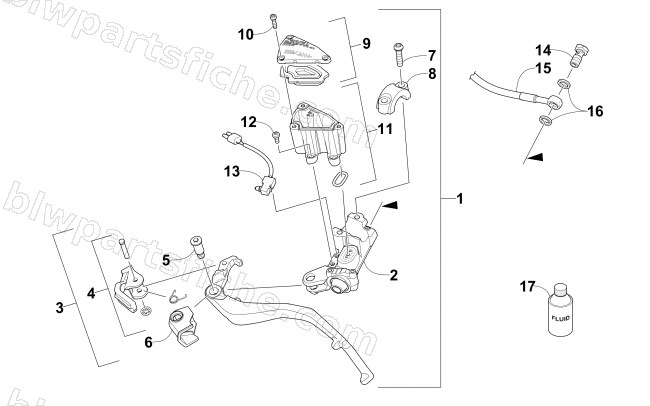

2016 Arctic Cat ZR 6000 LTD 137 ES — HYDRAULIC BRAKE CONTROL ASSEMBLY
2016 ZR 6000 LTD 137 ES
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2602-768 | CYLINDER,MASTER-SNO PRO LEVER | 1 | $319.95 | |
| 2 | 2602-479 | PISTON,SUB ASSY-W/RESERVIOR BODY | 1 | $322.95 | |
| 3 | 2602-770 | LEVER & PARK - SUB ASSY-BLK | 1 | $193.95 | |
| 4 | 2602-428 | PARK LEVER-SUB ASSY | 1 | $43.95 | |
| 5 | 2602-624 | PIN,PIVOT-M8 | 1 | $19.25 | |
| 6 | 2602-625 | BOOT,PIVOT PIN | 1 | $30.95 | |
| 7 | 1602-936 | CLAMP SCREWS-BRAKE | 1 | $19.25 | |
| 8 | 0502-869 | CLAMP(BLACK) | 1 | $53.95 | |
| 9 | 2602-429 | RESERVOIR COVER-SUB ASSY | 1 | $32.95 | |
| 10 | 2602-430 | KIT,SCREWS-RESERVOIR COVER | 1 | $5.37 | |
| 11 | 2602-433 | RESERVOIR-W/MOUNT SCREWS | 1 | $49.95 | |
| 13 | 2602-432 | SWITCH,STOPLIGHT | 1 | $88.95 | |
| 14 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 15 | 2602-424 | R/B 3602-099 | 1 | $104.95 | |
| 16 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 17 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 |
