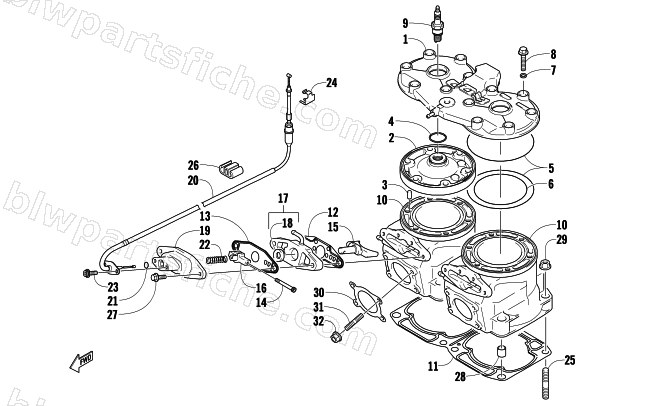

CYLINDER AND HEAD ASSEMBLY
2016 ZR 6000 R SX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-725 | COVER,CYLINDER HEAD | 1 | $239.95 | |
| 2 | 3007-724 | HEAD,CYLINDER | 1 | $298.95 | |
| 3 | 3006-321 | PIN,5X10 '02 440 SNO PRO | 1 | $10.95 | |
| 4 | 3007-726 | O-RING,CYLINDER HEAD COVER | 1 | $16.49 | |
| 5 | 3007-728 | O-RING,CYLINDER HEAD-OUTER | 1 | $24.77 | |
| 6 | 3007-727 | O-RING,CYLINDER HEAD-INNER | 1 | $29.95 | |
| 7 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 8 | 3006-538 | BOLT,CYL HEAD | 1 | $5.65 | |
| 9 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 10 | 3007-717 | CYLINDER,'09 600 L/C-R | 1 | $1,462.95 | |
| 11 | 3006-493 | GASKET,BASE - CYLINDER | 1 | $30.95 | |
| 12 | 3007-705 | GASKET,EXHAUST VALVE CASE | 1 | $13.73 | |
| 13 | 3006-436 | GASKET,EXHAUST VALVE COVER | 1 | $5.51 | |
| 14 | 3005-983 | PIN, EXHAUST VALVE 02 500 L/C | 1 | $19.25 | |
| 15 | 3007-729 | VALVE,EXHAUST | 1 | $333.95 | |
| 16 | 3005-860 | STOPPER, EXHAUST VALVE | 1 | $65.95 | |
| 17 | 3007-730 | PLATE,EXHAUST VALVE | 1 | $120.95 | |
| 18 | 3007-731 | SEAL,EXHAUST VALVE OIL | 1 | $27.95 | |
| 19 | 3006-425 | COVER,EXHAUST VALVE | 1 | $84.95 | |
| 20 | 3007-773 | CABLE,EXHAUST | 1 | $120.95 | |
| 21 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 22 | 3006-484 | SPRING | 1 | $6.34 | |
| 23 | 3007-433 | BOLT | 1 | $3.16 | |
| 24 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 25 | 3007-732 | BOLT,CYLINDER STUD | 1 | $12.35 | |
| 26 | 3005-808 | CLAMP | 1 | $6.95 | |
| 27 | 3007-434 | BOLT | 1 | $3.16 | |
| 28 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 29 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 30 | 3007-741 | GASKET,EXHAUST | 1 | $15.11 | |
| 31 | 3007-465 | BOLT,STUD | 1 | $2.75 | |
| 32 | 3007-373 | NUT | 1 | $3.16 |
