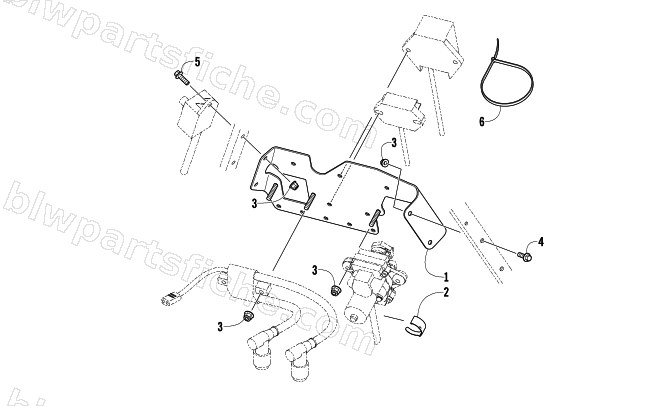

2016 Arctic Cat ZR 6000 R SX — ELECTRICAL PANEL ASSEMBLY
2016 ZR 6000 R SX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0730-213 | PANEL,ELECTRICAL-W/STUDS | 1 | $37.95 | |
| 2 | 5606-208 | CLIP,SERVO MOTOR | 1 | $29.95 | |
| 3 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 4 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 5 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 6 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
