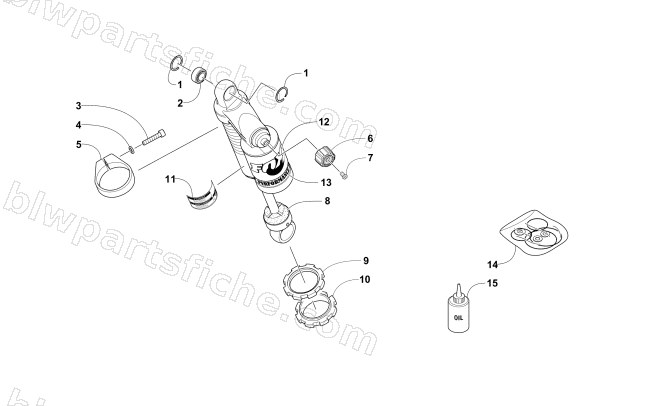

2016 Arctic Cat ZR 6000 R SX — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2016 ZR 6000 R SX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3604-527 | RING,RETAINING-SPIRAL-.021"X.926" OD | 1 | $13.73 | |
| 2 | 3604-526 | BEARING,SPHERICAL-.875 OD X .375 W | 1 | $89.95 | |
| 5 | 3604-532 | CLAMP,BODY CAP-1.90 ID X M5 | 1 | $81.95 | |
| 6 | 3603-385 | KNOB,DAMPING ADJUST-LOW SPEED | 1 | $3.99 | |
| 7 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 8 | 3604-530 | BUMPER,SHOCK-.450 ID X .400 TLG | 1 | $49.95 | |
| 9 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 10 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 11 | 3603-418 | DECAL BAND [4.4 X 1.5] WARNING SYMBOLS | 1 | $12.35 | |
| 12 | 3603-378 | DECAL,RESERVOIR-PERFORMANCE SERIES | 1 | $17.87 | |
| 13 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 14 | 4604-017 | KIT,REBUILD-SEAL/BEARING | 1 | $93.95 | |
| 15 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
