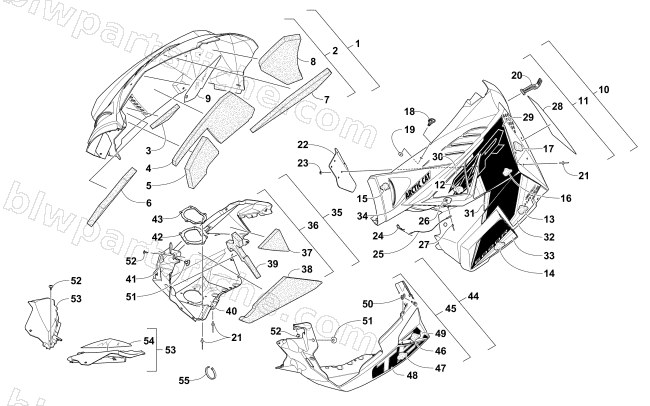

2016 Arctic Cat ZR 6000 R SX — SKID PLATE AND SIDE PANEL ASSEMBLY
2016 ZR 6000 R SX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 4718-608 | PANEL,SIDE-RH TAG-W/FOAM | 1 | $440.95 | |
| 11 | 4718-609 | PANEL,SIDE-LH TAG-W/FOAM | 1 | $440.95 | |
| 12 | 6606-466 | FOIL,PROTECTIVE-SIDE PANEL | 1 | $3.30 | |
| 13 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 14 | 0617-633 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $22.01 | |
| 15 | 0617-737 | FOAM,SIDE PANEL-TOP-LH | 1 | $38.95 | |
| 16 | 0617-697 | FOAM,SIDE PANEL-LH | 1 | $46.95 | |
| 17 | 0617-735 | FOAM,SIDE PANEL-VENT-LH | 1 | $16.49 | |
| 18 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 19 | 2623-056 | RETAINER,1/4 TURN | 1 | $1.92 | |
| 21 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 22 | 6606-660 | PANEL,REINFORCEMENT | 1 | $29.95 | |
| 23 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 24 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 25 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 26 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 27 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 28 | 9611-498 | DECAL,WARNING-FRENCH | 1 | $13.73 | |
| 28 | 9611-499 | DECAL,WARNING-ENGLISH | 1 | $16.49 | |
| 34 | 0621-755 | DECAL,HOOD-"ARCTIC CAT"-BLK/GRN | 1 | $5.95 | |
| 43 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 45 | 3718-785 | PLATE,SKID-BLK RACE-LH-W/FOAM | 1 | $110.95 | |
| 46 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 47 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 50 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 51 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 52 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 53 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 53 | 3718-303 | PANEL,FILLER W/FOIL-LH | 1 | $19.25 | |
| 54 | 6606-405 | FOIL,PROTECTIVE-FILLER PANEL-LH | 1 | $27.95 | |
| 55 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
