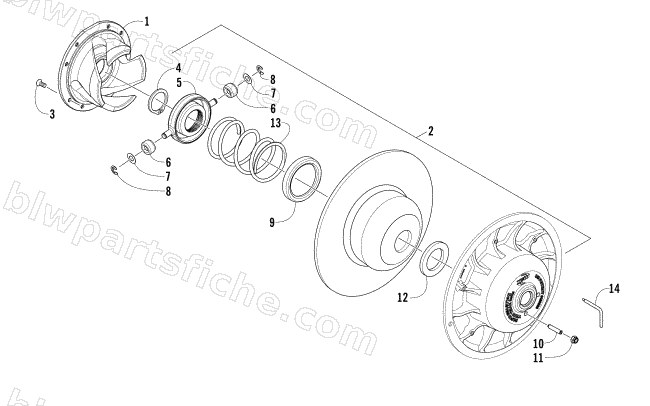

DRIVEN CLUTCH
2016 ZR 6000 R XC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0648-854 | CAM ASSY,TEAM L/W-REV 42/44 | 1 | $286.95 | |
| 3 | 0648-748 | SCREW,CAP-TSFH 1/4-28 X.625 (TI) | 1 | $2.95 | |
| 4 | 0648-771 | RING,RETAINING-EXTERNAL 1.375" | 1 | $15.11 | |
| 6 | 0648-699 | ROLLER,CLUTCH(TI) | 1 | $42.95 | |
| 7 | 0648-700 | WASHER,THRUST(TI) | 1 | $1.37 | |
| 8 | 0648-701 | RING,RETAINING-.375(TI) (R/B 0823-440) | 1 | $6.95 | |
| 9 | 0648-703 | WASHER,THRUST(TI) | 1 | $22.01 | |
| 11 | 0648-777 | NUT,FLEXLOCK-1/4-20 UNC (TEAM IND.) | 1 | $0.40 | |
| 12 | 0648-855 | SPACER,DRIVEN | 1 | $17.87 | |
| 13 | 0648-853 | SPRING,DRIVEN-180/260 | 1 | $37.95 | |
| 14 | 0644-424 | TOOL,CLUTCH BELT ADJUST | 1 | $6.06 |
