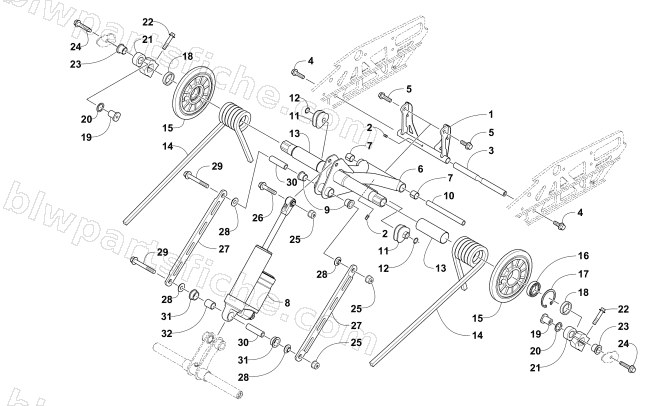

2016 Arctic Cat ZR 6000 R XC — REAR SUSPENSION REAR ARM ASSEMBLY
2016 ZR 6000 R XC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2704-320 | ARM,REAR-BLK FABR | 1 | $69.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 3604-965 | AXLE,XBRC-HC-16.51OD X 222.25 LG | 1 | $26.95 | |
| 4 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 5 | 8408-041 | SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353 | 1 | $0.95 | |
| 6 | 2704-533 | ARM,IDLER-BLK-FABR | 1 | $247.95 | |
| 7 | 2603-481 | BEARING,GARLOCK (12DU16) | 1 | $2.75 | |
| 9 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 10 | 3604-638 | AXLE,ALUM-19.05 X 173.15-MACH | 1 | $56.95 | |
| 11 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 11 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 12 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 13 | 3604-819 | SLEEVE,SPRING-98 MM | 1 | $15.11 | |
| 14 | 2704-382 | SPRING,SUSP-18.9LBS/89DEG-PTD BLK RH | 1 | $112.95 | |
| 14 | 2704-383 | SPRING,SUSP-18.9LBS/89DEG-PTD BLK LH | 1 | $112.95 | |
| 15 | 3604-616 | WHEEL,IDL-7.125(NO INSR)W/HOLE | 1 | $53.95 | |
| 16 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 17 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 18 | 3604-289 | SPACER,OFFSET ARM-HEX SHAFT | 1 | $2.06 | |
| 19 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 20 | 3604-930 | WASHER,OFF SET ARM-.035"THK | 1 | $0.95 | |
| 22 | 8408-051 | SCREW,CAP-HFH M10X1.25X50 CL8.8 W/2353 | 1 | $19.25 | |
| 23 | 3604-713 | BUSHING,GARLOCK-12FDU12 | 1 | $3.85 | |
| 24 | 2623-002 | SCREW,CAP-HFH-M10X1.25X30-MPT-W/2353 | 1 | $3.71 | |
| 25 | 2623-076 | R/B 2623-202 | 1 | $1.39 | |
| 26 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 | |
| 27 | 2704-230 | LINK,REAR SHOCK-FAB | 1 | $60.95 | |
| 28 | 3604-266 | INSERT,RAIL-M10 X 25 | 1 | $3.30 | |
| 29 | 8408-090 | SCREW,CAP-HFH M10X1.25X90 CL8.8 Z&Y | 1 | $3.85 | |
| 30 | 3604-694 | AXLE,REAR SHOCK LINK | 1 | $20.63 | |
| 31 | 3604-804 | BUSHING,SHOCK-.085" FLANGE | 1 | $2.06 | |
| 32 | 3604-802 | SLEEVE, 16 ID X 20.6 OD X 24.13 | 1 | $3.44 |
