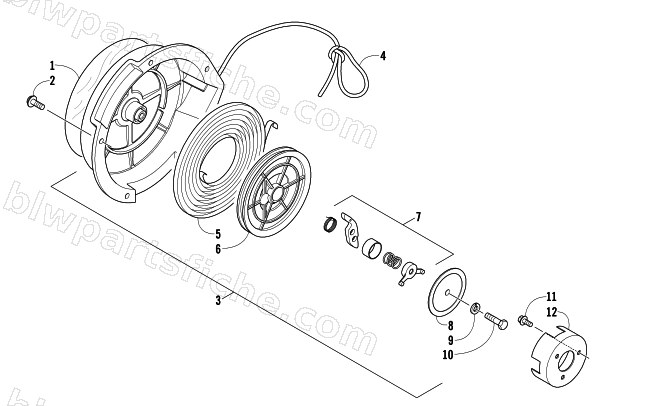

RECOIL STARTER
2016 ZR 6000 R XC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4606-425 | FOIL,PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $13.73 | |
| 2 | 0923-024 | SCREW,CAP-TSRDWH M6X1X16 CL 10.9 | 1 | $1.09 | |
| 3 | 0920-001 | RECOIL,STARTER-ASSY | 1 | $197.95 | |
| 4 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 5 | 0920-015 | SPIRAL SPRING | 1 | $60.95 | |
| 6 | 0920-016 | REEL | 1 | $34.95 | |
| 7 | 0920-018 | RATCHET SET | 1 | $43.95 | |
| 8 | 0920-017 | FRICTION PLATE | 1 | $16.49 | |
| 9 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 10 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 11 | 0923-023 | SCREW,CAP-HFH M8X1.25X12 CL8.8 | 1 | $1.37 | |
| 12 | 0920-002 | PULLEY, STARTER | 1 | $29.95 |
