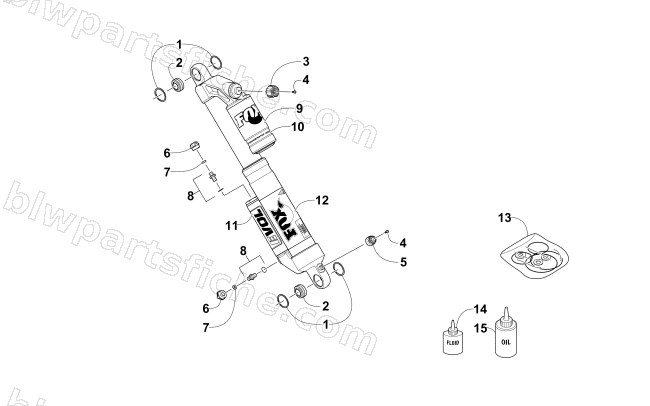

2016 Arctic Cat ZR 6000 RR EARLY BUILD — FRONT SUSPENSION SHOCK ABSORBER
2016 ZR 6000 RR EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3703-344 | SHOCK,SKI-EVOL X-RH (RR) | 1 | $1,263.95 | |
| 0 | 3703-345 | SHOCK,SKI-EVOL X-LH (RR) | 1 | $1,263.95 | |
| 1 | 3604-147 | RETAINING RING,INTERNAL SPIRAL | 1 | $16.49 | |
| 2 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 3 | 3603-385 | KNOB,DAMPING ADJUST-LOW SPEED | 1 | $3.99 | |
| 4 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 5 | 3603-386 | KNOB,DAMPING ADJUST-REBOUND | 1 | $7.30 | |
| 6 | 3603-367 | CAP,VALVE-EVOL-BLACK | 1 | $3.99 | |
| 7 | 2603-965 | SEAL,CAP-EVOL AIR VALVE-.296"ODX.125"ID | 1 | $1.64 | |
| 8 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 9 | 3603-378 | DECAL,RESERVOIR-PERFORMANCE SERIES | 1 | $17.87 | |
| 10 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 11 | 3603-373 | DECAL,FLOAT X EVOL | 1 | $20.63 | |
| 12 | 3603-369 | DECAL,FLOAT 3-W/WARNINGS | 1 | $17.87 | |
| 13 | 3603-420 | KIT, REBUILD - FLOAT 3 - EVOL RC2 | 1 | $171.95 | |
| 14 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 15 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
