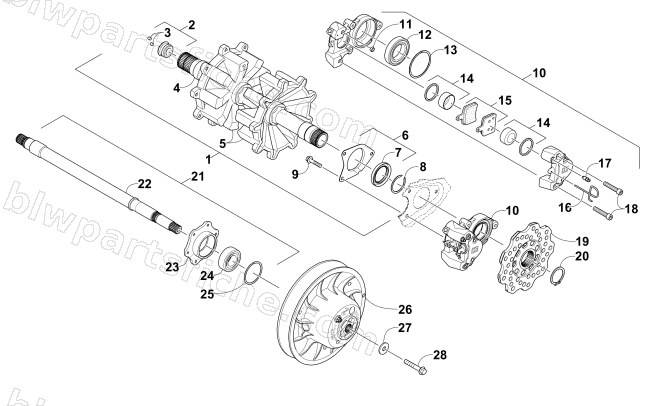

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2016 ZR 6000 RR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1702-072 | PLUG,DRIVE SHAFT-W/MAGNET | 1 | $16.49 | |
| 4 | 2602-740 | SHAFT,DRIVE-HEX-45MM BOTTOM BRAKE | 1 | $259.95 | |
| 5 | 2602-912 | SPROCKET,DRIVE-9T-2.86P EXV | 1 | $69.95 | |
| 6 | 1702-206 | R/B 1702-502 | 1 | $24.95 | |
| 8 | 2602-233 | SNAP RING(CLR-175) | 1 | $2.19 | |
| 9 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 10 | 2602-486 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $425.95 | |
| 11 | 2602-411 | SEAL,CROSSOVER | 1 | $3.44 | |
| 12 | 2602-198 | BEARING (6009-2RSFP-C3) | 1 | $24.77 | |
| 13 | 2602-280 | RING,SNAP(MKA-75) | 1 | $3.57 | |
| 14 | 2602-410 | KIT,PISTONS/SEALS | 1 | $75.95 | |
| 15 | 1702-245 | PAD SET,BRAKE | 1 | $114.95 | |
| 17 | 2602-408 | FITTING,BLEEDER | 1 | $5.65 | |
| 18 | 2602-412 | BOLT,BRAKE CALIPER | 1 | $4.68 | |
| 19 | 2602-720 | DISK,BRAKE-FORGED-34T SPLINED-MACH | 1 | $240.95 | |
| 20 | 2602-629 | SNAP RING-(MSH-43) | 1 | $2.61 | |
| 22 | 2602-969 | SHAFT,DRIVEN-FWD | 1 | $275.95 | |
| 23 | 2602-454 | HUB,BEARING HOUSING-MACH | 1 | $45.95 | |
| 24 | 2602-247 | BEARING,30 X 62 X 20 - 2206 -2RS | 1 | $20.63 | |
| 25 | 2602-236 | SNAP RING(MKA-62) | 1 | $3.16 | |
| 26 | 0726-365 | CLUTCH,DRIVEN-48S ER/140-200 ASSY | 1 | $735.95 | |
| 27 | 2623-120 | WASHER,BELLEVILLE-11.6ID X 31.55OD X 3.6 | 1 | $5.09 | |
| 28 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 |
