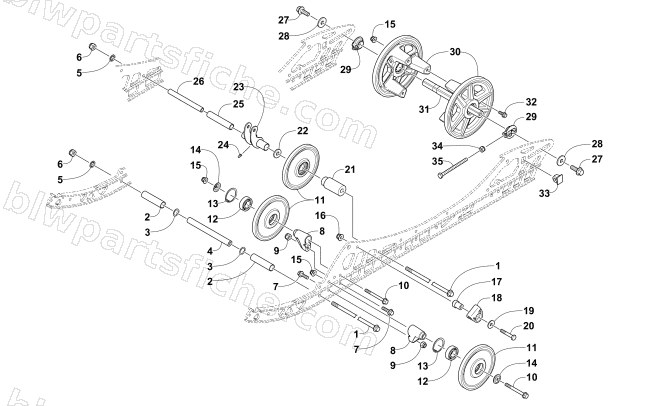

IDLER WHEEL ASSEMBLY
2016 ZR 7000 137 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1423-064 | R/B 1423-431 | 1 | $20.95 | |
| 2 | 3604-083 | SPACER,FRONT ARM SHOCK | 1 | $12.35 | |
| 3 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 4 | 3604-269 | AXLE,ALUM-22.2 X 222.2 | 1 | $60.95 | |
| 5 | 1623-992 | WASHER,LOCK-M10 INTL TOOTH TYP J Z&C | 1 | $0.26 | |
| 6 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 7 | 8413-620 | SCREW,CAP-HFH M6X1.0X20 CL10.9 SILV | 1 | $0.95 | |
| 8 | 3604-899 | BLOCK,MTG-IDLER WHEEL-TALL (MAG) | 1 | $8.21 | |
| 9 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 10 | 8413-675 | SCREW,CAP-HFH M6X1.0X75 CL10.9 SILV | 1 | $3.16 | |
| 11 | 3604-039 | WHEEL,IDL-5.63 W.787"ID BLK (NO SPOKE) | 1 | $53.95 | |
| 12 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 13 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 14 | 2623-025 | WASHER,STEPPED-6mm ID X 26mm OD-MZ&B | 1 | $1.37 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 17 | 3604-204 | BLOCK,SLIDE-SPRING-PM-1.20" | 1 | $13.73 | |
| 18 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 19 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 20 | 8408-855 | SCREW,CAP-HFH M8X1.25X55 CL8.8 Z&Y | 1 | $1.92 | |
| 21 | 3604-327 | BLOCK, MTG-IDLER WHEEL-M10 | 1 | $29.95 | |
| 22 | 1623-794 | WASHER,FLAT-.636 1.000 X .063 Z&Y | 1 | $0.95 | |
| 23 | 1704-674 | PIVOT, REAR SHOCK-FABR | 1 | $42.95 | |
| 24 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 25 | 3604-325 | SPACER, AUX WHEEL-INSIDE | 1 | $38.95 | |
| 26 | 3604-285 | AXLE,REAR ARM-INNER-M10X155.5 | 1 | $16.49 | |
| 27 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 28 | 1623-931 | WASHER,FLAT-ALUM-M10X29 | 1 | $1.50 | |
| 29 | 3604-641 | BUSHING,ADJUSTER-REAR WHEEL | 1 | $6.75 | |
| 30 | 4604-137 | WHEEL,IDL-TRI HUB-8.00 W/.787 ID | 1 | $69.95 | |
| 31 | 3604-640 | AXLE,XBRC-REAR WHEEL-215.9mm | 1 | $54.95 | |
| 32 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 33 | 3604-647 | ADJUSTER,TRACK-8mm-CAST | 1 | $3.71 | |
| 34 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 35 | 1623-682 | SCREW,CAP-HH-M8 X 1.25 X 100 Z&Y | 1 | $1.78 |
