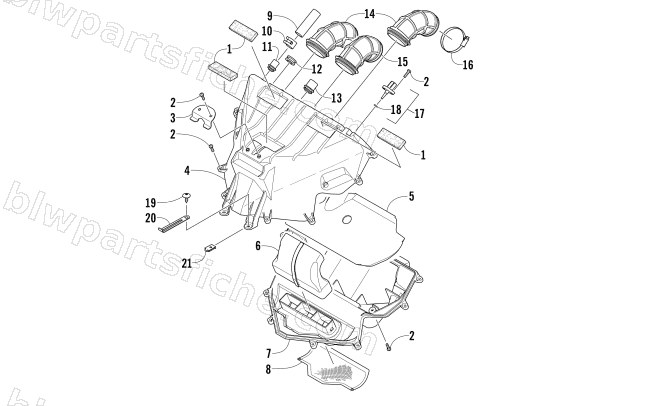

AIR INTAKE ASSEMBLY
2016 ZR 7000 137 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5606-682 | BUMPER, FUEL TANK | 1 | $3.71 | |
| 2 | 1623-251 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&Y | 1 | $0.26 | |
| 3 | 0613-142 | BRKT,RETAINING-RADIATOR SHROUD | 1 | $5.09 | |
| 4 | 2670-321 | R/B 2670-499 | 1 | $57.95 | |
| 5 | 2670-322 | BAFFLE,INTAKE-Z3 | 1 | $20.63 | |
| 6 | 2670-365 | STACK,FLOW-AIR INTAKE-ASSY | 1 | $17.87 | |
| 7 | 2670-320 | SILENCER,AIR-LOWER | 1 | $65.95 | |
| 8 | 2670-396 | SCREEN,AIR INTAKE | 1 | $16.49 | |
| 9 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 10 | 1623-966 | CLAMP,HOSE - #CTL-8 | 1 | $2.06 | |
| 11 | 2670-432 | RETAINER, HOSE-13mm ID | 1 | $2.06 | |
| 12 | 2623-039 | GROMMET,RUBBER-17.5X25.4X9.5 | 1 | $1.64 | |
| 13 | 2670-433 | RETAINER, HOSE-19mm ID | 1 | $2.19 | |
| 14 | 2670-279 | BOOT,THROTTLE BODY | 1 | $53.95 | |
| 15 | 2670-280 | BOOT,THROTTLE BODY | 1 | $53.95 | |
| 16 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 17 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 18 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 19 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 20 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 21 | 1623-052 | NUT,U | 1 | $0.95 |
