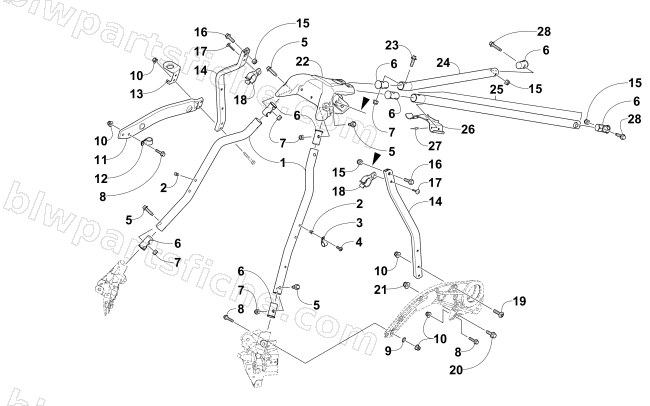

2016 Arctic Cat ZR 7000 EL TIGRE LTD 129 — STEERING SUPPORT ASSEMBLY
2016 ZR 7000 EL TIGRE LTD 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 3 | 0423-403 | CLAMP,TUBE-1.125"(ARDEN COV 1909 ZI) | 1 | $12.35 | |
| 4 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 5 | 1623-836 | SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z&Y-MPT | 1 | $2.75 | |
| 6 | 1607-680 | INSERT,UPPER SPAR-10MM MALE | 1 | $3.57 | |
| 7 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 8 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 9 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 1707-584 | R/B 2707-760 | 1 | $108.95 | |
| 12 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 13 | 1712-851 | BRKT,MTG-UPR RES-PTD BLK | 1 | $20.63 | |
| 14 | 1607-121 | SUPPORT,STEERING-RH | 1 | $94.95 | |
| 14 | 1607-133 | SPAR,SUPPORT-STEERING-LH | 1 | $73.95 | |
| 15 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 16 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 17 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 18 | 0609-937 | CLIP,HARNESS-PLASTIC | 1 | $2.61 | |
| 19 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 20 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 21 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 22 | 2707-532 | SUPPORT,STEERING-PTD BLK-10MM 4 STRK | 1 | $189.95 | |
| 23 | 8408-030 | SCREW,CAP-HFH M10X1.25X30 CL8.8 Z&Y | 1 | $1.78 | |
| 24 | 2707-504 | SPAR,REAR-RH PTD BLK | 1 | $34.95 | |
| 25 | 6706-033 | BRKT,HOLDDOWN-SEATBASE-ASSY | 1 | $45.95 | |
| 26 | 6606-663 | BRKT,HOLDDOWN-SEATBASE | 1 | $12.35 | |
| 27 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 28 | 1623-982 | SCREW,CAP-HFH M8X1.25X30 CL8.8-Z&Y-DPT | 1 | $1.23 |
