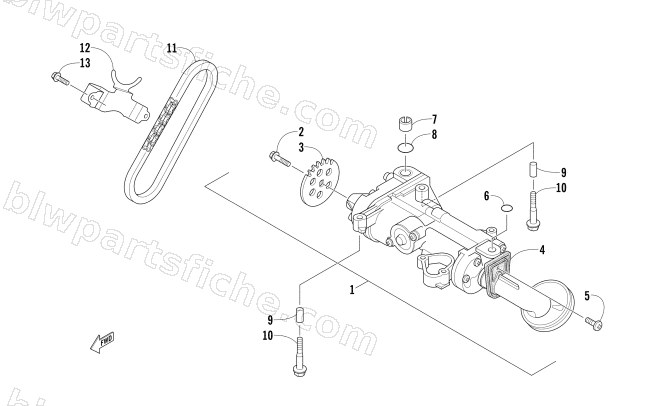

2016 Arctic Cat ZR 7000 SNO PRO 129 — OIL PUMP ASSEMBLY
2016 ZR 7000 SNO PRO 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-281 | PUMP,OIL-ASSEMBLY | 1 | $607.95 | |
| 2 | 3020-282 | SCREW,CAP-HFH | 1 | $4.26 | |
| 3 | 3020-283 | SPROCKET | 1 | $45.95 | |
| 4 | 3020-284 | ISOLATOR, OIL STRAINER | 1 | $20.63 | |
| 6 | 3020-285 | O-RING | 1 | $4.40 | |
| 7 | 3020-286 | INSERT | 1 | $2.88 | |
| 8 | 3020-287 | O-RING | 1 | $4.40 | |
| 9 | 3020-288 | PIN, DOWEL | 1 | $3.44 | |
| 10 | 3020-289 | SCREW,CAP-HFH | 1 | $3.16 | |
| 11 | 3020-290 | CHAIN | 1 | $19.25 | |
| 12 | 3020-291 | BRACKET,RETAINER-CHAIN | 1 | $37.95 | |
| 13 | 3020-292 | SCREW,CAP-HFH | 1 | $3.16 |
