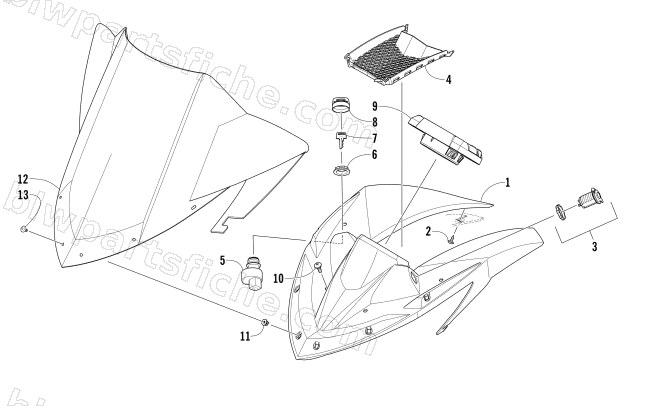

2016 Arctic Cat ZR 7000 SNO PRO 137 — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2016 ZR 7000 SNO PRO 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-692 | COWL,HEADIGHT-Z3-WHITE | 1 | $185.95 | |
| 2 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 3 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 4 | 6606-556 | VENT,POD | 1 | $33.95 | |
| 5 | 0609-911 | SWITCH,IGNITION-W/KEY | 1 | $66.95 | |
| 6 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 7 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 7 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 8 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 9 | 0720-029 | R/B 0720-036 | 1 | $709.95 | |
| 10 | 2623-042 | SCREW,SHOULDER-TSBH-M6-1.0 X 18 | 1 | $1.78 | |
| 11 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 12 | 6606-667 | WINDSHIELD,LOW-WHT-7000 | 1 | $135.95 | |
| 13 | 2623-017 | SCREW,SELF-TAP-TSTRH-M6X12-BOSCRW | 1 | $1.37 |
