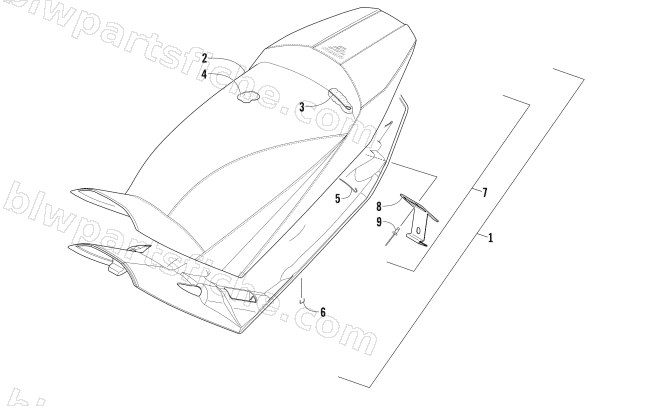

2016 Arctic Cat ZR 8000 LTD 129 ES ET — SEAT ASSEMBLY (Black)
2016 ZR 8000 LTD 129 ES ET
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6706-035 | SEAT,ASSY-ET | 1 | $713.95 | |
| 2 | 6706-036 | COVER,SEAT-ET (215) | 1 | $382.95 | |
| 3 | 3606-369 | WIRE,SEAT-BENT | 1 | $4.26 | |
| 4 | 0717-215 | FOAM,SEAT (64-70 ILD).48R@4.5 | 1 | $145.95 | |
| 5 | 6606-461 | WIRE,SEAT-3.048 DIA X 279.4 mm | 1 | $1.92 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 5706-240 | BASE,SEAT-W/SEAT LATCH HOOK | 1 | $65.95 | |
| 8 | 6606-452 | HOOK,SEAT LATCH | 1 | $17.87 | |
| 9 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 |
