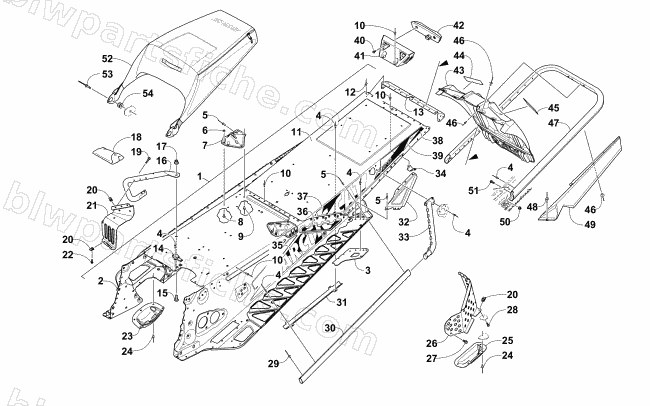

2016 Arctic Cat ZR 8000 LTD ES 129 — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2016 ZR 8000 LTD ES 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-825 | CHASSIS,128" 2 STRK-ASSY PTD BLK | 1 | $2,646.95 | |
| 1 | 1707-913 | TUNNEL,HP-S/P ASSY-PTD BLK | 1 | $1,077.95 | |
| 2 | 1707-910 | TUNNEL,FRONT-ASSY-PTD BLK | 1 | $700.95 | |
| 3 | 1707-916 | BRKT,REAR SUSP-OUTER RH-PTD BLK | 1 | $22.01 | |
| 3 | 2707-318 | BRKT,REAR SUSP-OUTER-RH-PTD TA GRN | 1 | $24.77 | |
| 3 | 1707-917 | BRKT,REAR SUSP-OUTER LH-PTD BLK | 1 | $22.01 | |
| 3 | 2707-319 | BRKT,REAR SUSP-OUTER-LH-PTD TA GRN | 1 | $24.77 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 6 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 7 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 7 | 2707-124 | BRKT,SPAR SUPPORT-RH-PTD TEAM ARC GRN | 1 | $32.95 | |
| 7 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 7 | 2707-125 | BRKT,SPAR SUPPORT-LH-PTD TEAM ARC GRN | 1 | $32.95 | |
| 8 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 9 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 10 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 11 | 1707-835 | TUNNEL,REAR-128-PTD BLK | 1 | $203.95 | |
| 11 | 2707-314 | TUNNEL,REAR-128-PTD TA GRN | 1 | $201.95 | |
| 12 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 13 | 1707-725 | END CAP,TUNNEL-PTD BLK | 1 | $38.95 | |
| 13 | 2707-315 | END CAP,TUNNEL-PTD TA GRN | 1 | $38.95 | |
| 14 | 0645-709 | CLIP,BATTERY CABLE | 1 | $5.09 | |
| 15 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 16 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 16 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 17 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 18 | 0744-087 | KIT,TOOL BAG-2 STROKE-ASSY | 1 | $90.95 | |
| 19 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 20 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 21 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 21 | 2707-004 | TOE STOP,RH-FORMED-PTD TEAM ARCTIC GRN | 1 | $29.95 | |
| 21 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 21 | 2707-005 | TOE STOP,LH-FORMED-PTD TEAM ARCTIC GRN | 1 | $29.95 | |
| 22 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 23 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 24 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 25 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 26 | 2707-044 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $53.95 | |
| 26 | 2707-042 | COVER,SHIELD-BRK DISC-PTD TEAM ARC GRN | 1 | $45.95 | |
| 27 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 28 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 29 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 30 | 1707-697 | EDGE,RUNNING BOARD-PTD BLK | 1 | $54.95 | |
| 30 | 2707-346 | EDGE,RUNNING BOARD-PTD TA GRN | 1 | $54.95 | |
| 31 | 0630-308 | PROTECTOR,TAILLIGHT HARNESS-128" | 1 | $16.49 | |
| 32 | 1707-698 | GUSSET,RUNNING BOARD-RH-PTD BLK | 1 | $27.95 | |
| 32 | 2707-320 | GUSSET,RUNNING BOARD-RH-PTD TA GRN | 1 | $29.95 | |
| 32 | 1707-699 | GUSSET,RUNNING BOARD-LH-PTD BLK | 1 | $27.95 | |
| 32 | 2707-321 | GUSSET,RUNNING BOARD-LH-PTD TA GRN | 1 | $29.95 | |
| 33 | 1707-700 | GUSSET,TUNNEL-RH-PTD BLK | 1 | $30.95 | |
| 33 | 2707-338 | GUSSET,TUNNEL-RH-PTD TA GRN | 1 | $30.95 | |
| 33 | 1707-701 | GUSSET,TUNNEL-LH-PTD BLK | 1 | $29.95 | |
| 33 | 2707-339 | GUSSET,TUNNEL-LH-PTD TA GRN | 1 | $30.95 | |
| 34 | 0630-292 | PROTECTOR,TAILLIGHT HARNESS-26.5mm | 1 | $15.11 | |
| 36 | 2621-452 | DECAL,TUNNEL 3-RH-BLK (LTD) | 1 | $16.49 | |
| 36 | 2621-412 | DECAL,TUNNEL 3-RH-GRN (LTD) | 1 | $23.39 | |
| 36 | 2621-453 | DECAL,TUNNEL 3-LH-BLK (LTD) | 1 | $16.49 | |
| 36 | 2621-413 | DECAL,TUNNEL 3-LH-GRN (LTD) | 1 | $16.49 | |
| 39 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 40 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 41 | 0730-227 | HOUSING,TAILLIGHT-PTD BLK | 1 | $38.95 | |
| 41 | 0730-230 | HOUSING,TAILLIGHT-PTD TEAM ARC GRN | 1 | $38.95 | |
| 42 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 43 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 44 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 45 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 46 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 47 | 2707-578 | BUMPER,REAR-129"-PTD-BLK | 1 | $101.95 | |
| 47 | 2707-580 | BUMPER,REAR-129"-PTD-TA GRN | 1 | $101.95 | |
| 48 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 49 | 6606-870 | FLARE,TUNNEL-RH BLK | 1 | $58.95 | |
| 49 | 6606-871 | FLARE,TUNNEL-LH BLK | 1 | $58.95 | |
| 50 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 51 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 52 | 6606-600 | SADDLEBAG,REAR | 1 | $234.95 | |
| 53 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 54 | 1623-940 | GROMMET,SEAT BAG | 1 | $2.06 |
