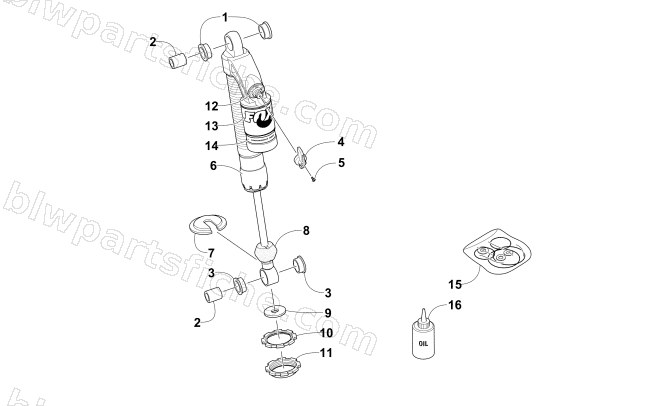

2016 Arctic Cat ZR 8000 LTD ES EARLY BUILD — FRONT SUSPENSION SHOCK ABSORBER
2016 ZR 8000 LTD ES EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3703-476 | SHOCK, SKI 1.5" W/REMOTE COILOVER W/QS3 | 1 | $823.95 | |
| 1 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 3603-283 | BUSHING,EYELET-1.20" X 1.015" X .824 ID | 1 | $26.95 | |
| 5 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 6 | 4604-016 | SPRING, GUIDE-1.82 OD X 1.50 TLG | 1 | $38.95 | |
| 7 | 0403-490 | RETAINER,SPRING-2.55 OD X .34 TLG | 1 | $37.95 | |
| 8 | 3603-024 | BUMPER,.498 SHAFT X 1.050 TLG | 1 | $16.49 | |
| 9 | 3603-028 | WASHER, .501 ID X 1.500 OD X 0.125 THK | 1 | $12.95 | |
| 10 | 3603-026 | RING,PRELOAD BACK UP-2.4ODX.240TLG | 1 | $16.49 | |
| 11 | 3603-027 | RING,PRELOAD-2.40 OD X .450 TLG | 1 | $17.87 | |
| 14 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 16 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
