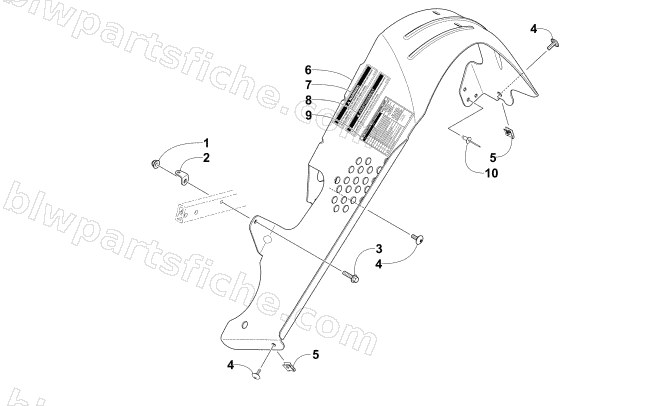

2016 Arctic Cat ZR 8000 SNO PRO RR 129 — BELT GUARD ASSEMBLY
2016 ZR 8000 SNO PRO RR 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 2 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 3 | 8408-525 | SCREW,CAP-HFH M5X0.8X25 CL8.8 Z&Y | 1 | $0.95 | |
| 4 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 5 | 1623-052 | NUT,U | 1 | $0.95 | |
| 6 | 2707-710 | GUARD,CLUTCH-W/WARNING DECALS | 1 | $106.95 | |
| 7 | 9611-690 | DECAL,WARNING-GUARD-ENGLISH | 1 | $3.16 | |
| 8 | 9611-691 | DECAL,WARNING-GUARD-FRENCH (9611-690) | 1 | $3.16 | |
| 9 | 9611-743 | DECAL,EFI DIAGNOSTIC CODES | 1 | $6.47 | |
| 10 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 |
