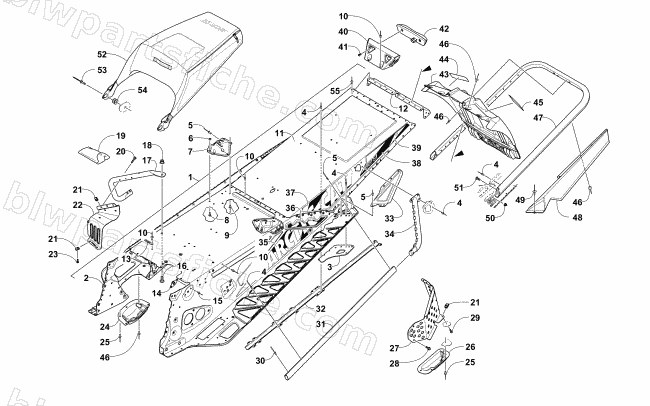

2016 Arctic Cat ZR 9000 129 LTD — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2016 ZR 9000 129 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2707-701 | CHASSIS,128" 4 STRK-ASSY-PTD TEAM ARC GR | 1 | $2,312.95 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 6 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 7 | 1707-736 | BRKT,SPAR SUPPORT-RH PTD GRN | 1 | $30.95 | |
| 7 | 1707-737 | BRKT,SPAR SUPPORT-LH PTD GRN | 1 | $30.95 | |
| 8 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 9 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 10 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 11 | 2707-314 | TUNNEL,REAR-128-PTD TA GRN | 1 | $201.95 | |
| 12 | 2707-315 | END CAP,TUNNEL-PTD TA GRN | 1 | $38.95 | |
| 13 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 14 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 15 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 16 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 17 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 17 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 18 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 19 | 0744-088 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $93.95 | |
| 20 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 21 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 22 | 2707-004 | TOE STOP,RH-FORMED-PTD TEAM ARCTIC GRN | 1 | $29.95 | |
| 22 | 2707-005 | TOE STOP,LH-FORMED-PTD TEAM ARCTIC GRN | 1 | $29.95 | |
| 23 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 24 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 25 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 26 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 27 | 2707-042 | COVER,SHIELD-BRK DISC-PTD TEAM ARC GRN | 1 | $45.95 | |
| 28 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 29 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 30 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 31 | 2707-346 | EDGE,RUNNING BOARD-PTD TA GRN | 1 | $54.95 | |
| 32 | 0630-308 | PROTECTOR,TAILLIGHT HARNESS-128" | 1 | $16.49 | |
| 33 | 1707-734 | GUSSET,RUNNING BOARD-RH PTD GRN | 1 | $27.95 | |
| 33 | 1707-735 | GUSSET,RUNNING BOARD-LH PTD GRN | 1 | $27.95 | |
| 34 | 2707-338 | GUSSET,TUNNEL-RH-PTD TA GRN | 1 | $30.95 | |
| 34 | 2707-339 | GUSSET,TUNNEL-LH-PTD TA GRN | 1 | $30.95 | |
| 36 | 2621-412 | DECAL,TUNNEL 3-RH-GRN (LTD) | 1 | $23.39 | |
| 36 | 2621-413 | DECAL,TUNNEL 3-LH-GRN (LTD) | 1 | $16.49 | |
| 39 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 40 | 0730-230 | HOUSING,TAILLIGHT-PTD TEAM ARC GRN | 1 | $38.95 | |
| 41 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 42 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 43 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 44 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 45 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 46 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 47 | 2707-580 | BUMPER,REAR-129"-PTD-TA GRN | 1 | $101.95 | |
| 48 | 6606-870 | FLARE,TUNNEL-RH BLK | 1 | $58.95 | |
| 48 | 6606-871 | FLARE,TUNNEL-LH BLK | 1 | $58.95 | |
| 49 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 50 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 51 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 52 | 6606-600 | SADDLEBAG,REAR | 1 | $234.95 | |
| 53 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 54 | 1623-940 | GROMMET,SEAT BAG | 1 | $2.06 |
