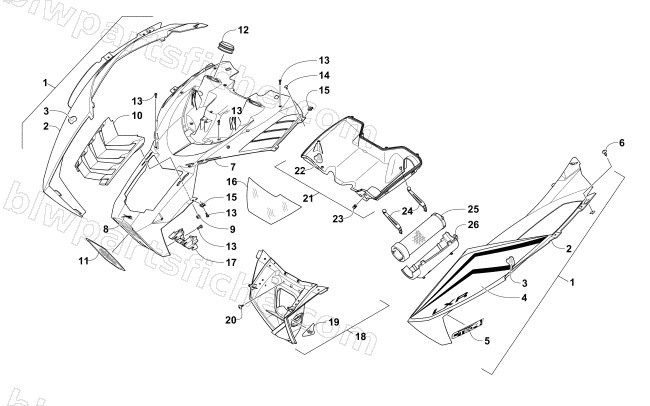

2016 Arctic Cat ZR 9000 137 LXR — HOOD AND AIR INTAKE ASSEMBLY
2016 ZR 9000 137 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3718-620 | HOOD,W/FOIL-4 STRK RH-WHT | 1 | $144.95 | |
| 2 | 3718-621 | HOOD,W/FOIL-LH-WHT | 1 | $164.95 | |
| 3 | 6606-420 | FOIL,HOOD-RH | 1 | $3.02 | |
| 3 | 6606-415 | FOIL,PROTECTIVE-HOOD-LH | 1 | $4.40 | |
| 4 | 2621-584 | DECAL,HOOD-GRN RH-"LXR" | 1 | $27.95 | |
| 4 | 2621-585 | DECAL,HOOD-GRN LH-"LXR" | 1 | $32.95 | |
| 5 | 0621-993 | DECAL,HOOD-"CTEC4"-TA GRN | 1 | $4.40 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 9 | 1623-765 | CLIP,RETAINING-HOOD | 1 | $1.50 | |
| 10 | 6606-388 | GRILLE,INTERCOOLER-BLK | 1 | $24.77 | |
| 11 | 0608-696 | SCREEN,PLENUM | 1 | $20.63 | |
| 12 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 13 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 14 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 15 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 16 | 6606-421 | FOIL,INTAKE PLENUM-UPPER | 1 | $2.88 | |
| 17 | 6606-822 | RETAINER,LOWER PLENUM | 1 | $13.73 | |
| 18 | 5706-991 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(T) | 1 | $66.95 | |
| 19 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 20 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 21 | 5706-380 | PLENUM,INTAKE-LWR-REAR-W/FOIL | 1 | $70.95 | |
| 22 | 6606-422 | FOIL,INTAKE PLENUM-LOWER-TURBO | 1 | $5.51 | |
| 23 | 1623-023 | NUT,SPEED-#10-32 U TYPE | 1 | $1.50 | |
| 24 | 6606-392 | STRAP,HOLD-DOWN-RUBBER | 1 | $2.88 | |
| 25 | 2670-265 | FILTER,AIR (TURBO) | 1 | $45.95 | |
| 26 | 6606-365 | COVER,AIR FILTER | 1 | $29.95 |
