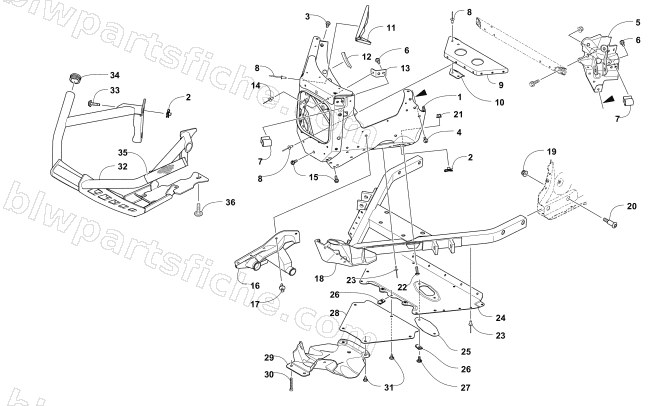

2016 Arctic Cat ZR 9000 ET LTD 129 — FRONT BUMPER AND FRAME ASSEMBLY
2016 ZR 9000 ET LTD 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 1623-683 | SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z&B | 1 | $1.23 | |
| 4 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 5 | 1707-776 | HOUSING,A-ARM/SHOCK MTG-RH-PTD BLK | 1 | $106.95 | |
| 5 | 1707-777 | HOUSING,A-ARM/SHOCK MTG-LH-PTD BLK | 1 | $101.95 | |
| 6 | 8413-617 | SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353 | 1 | $1.23 | |
| 7 | 1607-233 | BRKT,MTG-UPPER A-ARM-M6 X 1 THDS | 1 | $15.11 | |
| 8 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 9 | 1607-565 | BRKT,MTG-STEERING POST-LWR | 1 | $29.95 | |
| 10 | 1607-566 | BRKT,MTG-STEERING POST BRACE-LWR | 1 | $3.57 | |
| 11 | 0607-991 | BRKT,MTG-STEERING STOP | 1 | $16.49 | |
| 12 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 13 | 1607-561 | GUSSET,MTG BRKT-UPR A-ARM | 1 | $1.78 | |
| 14 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 15 | 1623-959 | SCREW,SELF TAP 1/4-20X5/8 TYPE F BLK | 1 | $0.26 | |
| 16 | 1605-028 | BOOT,STEERING-RH | 1 | $33.95 | |
| 16 | 1605-029 | BOOT,STEERING-LH | 1 | $33.95 | |
| 17 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 18 | 1707-843 | R/B 3707-131 | 1 | $447.95 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 1623-817 | SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16 | 1 | $1.92 | |
| 21 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 22 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 23 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 24 | 0607-983 | BELLYPAN,CENTER-STAMPED | 1 | $37.95 | |
| 25 | 1607-108 | COVER,OIL DRAIN-4 STRK | 1 | $24.77 | |
| 26 | 1623-052 | NUT,U | 1 | $0.95 | |
| 27 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 28 | 1607-063 | PANEL,ACCESS | 1 | $12.35 | |
| 29 | 6606-614 | PLATE,SKID-CENTER | 1 | $13.73 | |
| 30 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 31 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 32 | 2707-273 | BUMPER,FRT PROCROSS-PTD TEAM ARC GRN | 1 | $333.95 | |
| 33 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 34 | 2623-086 | PLUG,PLASTIC 1.00" X 10-14 | 1 | $1.09 | |
| 35 | 2621-210 | DECAL,REFLECTOR-AMBER | 1 | $12.35 | |
| 36 | 1623-031 | R/B 2623-165 | 1 | $3.95 |
