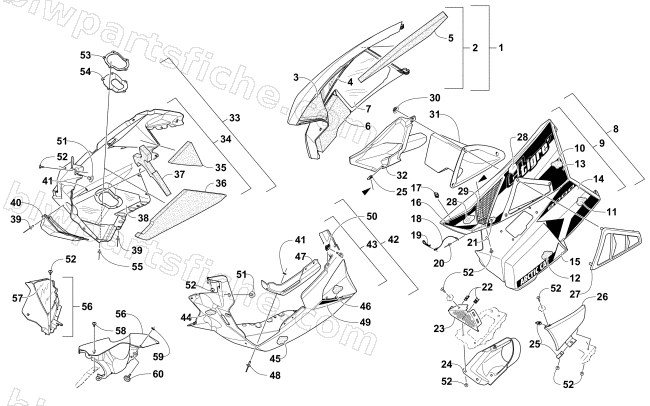

SKID PLATE AND SIDE PANEL ASSEMBLY
2016 ZR 9000 ET LTD 129
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3718-312 | PANEL,SIDE-RH WITH FOAM-BLK (4 STROKE) | 1 | $259.95 | |
| 9 | 4718-557 | PANEL,SIDE-LH-W/FOAM-BLK TURBO | 1 | $460.95 | |
| 10 | 0617-669 | FOAM,UPPER SIDE PANEL-REAR LH-4 STRK | 1 | $12.35 | |
| 11 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 12 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 15 | 2621-642 | DECAL,SIDE PANEL-FWD RH "ARCTIC CAT" | 1 | $17.87 | |
| 15 | 2621-643 | DECAL,SIDE PANEL-FWD LH "ARCTIC CAT" | 1 | $17.87 | |
| 16 | 2621-640 | DECAL,SIDE PANEL-UPR FWD RH | 1 | $5.09 | |
| 16 | 2621-641 | DECAL,SIDE PANEL-UPR FWD LH | 1 | $5.09 | |
| 17 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 18 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 19 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 20 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 21 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 22 | 1623-052 | NUT,U | 1 | $0.95 | |
| 23 | 6606-925 | SCREEN,INTAKE | 1 | $34.95 | |
| 24 | 2602-794 | DUCT,INTAKE-INNER | 1 | $27.95 | |
| 25 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 26 | 2602-793 | DUCT,INTAKE-OUTER-BLK | 1 | $19.25 | |
| 27 | 0608-648 | COVER,DUCT-HEAT-TURBO | 1 | $16.49 | |
| 28 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 29 | 5706-531 | SCREEN,SIDE PANEL-UPR LH-PTD BLK | 1 | $20.63 | |
| 30 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 31 | 0708-596 | DUCT,HEAT-TURBO-ROUTED | 1 | $62.95 | |
| 32 | 1702-367 | DUCT,BELT COOLING-4 STRK-ROUTED | 1 | $42.95 | |
| 34 | 3718-422 | PLATE,SKID-RH-W/FOAM | 1 | $192.95 | |
| 43 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 48 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 49 | 2621-644 | DECAL,SKID PLATE-RH | 1 | $22.01 | |
| 49 | 2621-645 | DECAL,SKID PLATE-LH | 1 | $22.01 | |
| 50 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 51 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 52 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 53 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 54 | 2612-799 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $17.87 | |
| 55 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 56 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 56 | 6606-351 | PANEL,FILLER-LH-TURBO-BLK | 1 | $67.95 | |
| 57 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 58 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 59 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 60 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
