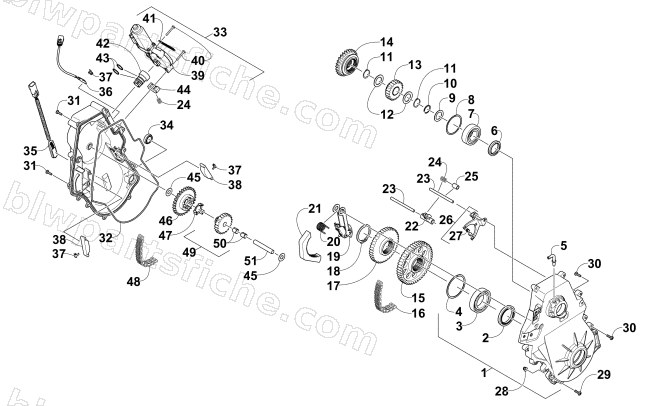

CHAIN CASE ASSEMBLY
2016 ZR 9000 LTD 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2602-172 | SEAL,OIL-HIGH COMP-50 X 65 X 8MM | 1 | $29.95 | |
| 3 | 2602-281 | BEARING,45 X 75 X 16 - 6009 | 1 | $13.73 | |
| 4 | 2602-280 | RING,SNAP(MKA-75) | 1 | $3.57 | |
| 5 | 2602-641 | FITTING,VENT-W/CHECK BALL | 1 | $8.21 | |
| 6 | 2602-204 | SEAL,35 X 47 X 7 - V | 1 | $16.49 | |
| 7 | 2602-734 | BEARING,30 X 62 X 20 | 1 | $20.63 | |
| 8 | 2602-236 | SNAP RING(MKA-62) | 1 | $3.16 | |
| 9 | 0648-443 | WASHER,FLAT-1.188 X 1.730 X .060 | 1 | $1.37 | |
| 10 | 1423-175 | RING,RETAINING-EXTERNAL (30MM SHAFT) | 1 | $1.92 | |
| 11 | 1623-690 | SNAP RING,EXTL-.925 ID | 1 | $1.09 | |
| 12 | 2602-339 | WASHER,THRUST-1.00 X 1.562 X .062 | 1 | $4.26 | |
| 13 | 1702-410 | SPROCKET,BW-21T REV-(13 WIDE/33 SPLINE) | 1 | $53.95 | |
| 14 | 2602-270 | SHIFT,COLLAR | 1 | $88.95 | |
| 15 | 2602-745 | SPROCKET,BW-41T(13 WIDE/34 SPLINE) | 1 | $127.95 | |
| 16 | 2602-743 | CHAIN,BORG WARNER-86P (13 WIDE) | 1 | $200.95 | |
| 17 | 2602-276 | SPROCKET,REX-40T(11 WIDE/34 SPLINE) | 1 | $43.95 | |
| 18 | 2602-629 | SNAP RING-(MSH-43) | 1 | $2.61 | |
| 20 | 2602-336 | SPRING,TORSION | 1 | $1.37 | |
| 21 | 2602-230 | BLOCK,RATCHET-CHAIN ADJ | 1 | $12.35 | |
| 22 | 1702-265 | RACK,SHIFT FORK-W/MAGNET | 1 | $33.95 | |
| 23 | 2602-418 | SHAFT,REVERSE-8MM | 1 | $17.87 | |
| 24 | 2602-417 | SPRING,COMPRESSION | 1 | $3.44 | |
| 25 | 2602-579 | SLEEVE,REVERSE | 1 | $3.57 | |
| 26 | 1702-299 | FORK,SHIFT-W/WEAR PAD | 1 | $112.95 | |
| 27 | 2602-341 | FORK,SHIFT-WEAR PAD | 1 | $20.63 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 30 | 1623-814 | SCREW,MAG FORM-TXPH-M6X2.0X24 | 1 | $1.09 | |
| 31 | 8468-626 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 W/2353 | 1 | $1.09 | |
| 32 | 2602-817 | R/B 3602-079 | 1 | $14.95 | |
| 34 | 2602-232 | GLASS,SIGHT | 1 | $13.73 | |
| 35 | 0730-172 | SENSOR,SPEEDOMETER-KIT | 1 | $79.95 | |
| 36 | 0730-197 | SENSOR,GEAR POSITION-KIT | 1 | $89.95 | |
| 37 | 1623-703 | CLIP, SPEED-WIRE RETAINER | 1 | $2.33 | |
| 38 | 2602-387 | SNUBBER,CHAIN-REVERSE | 1 | $3.02 | |
| 39 | 0630-285 | R/B 0630-347 | 1 | $283.95 | |
| 41 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 42 | 0630-331 | GEAR EXTENSION-ACTUATOR-MACH | 1 | $60.95 | |
| 43 | 0830-185 | O-RING, (-019) | 1 | $0.68 | |
| 44 | 0630-332 | BLOCK,DETENT-SHIFT ACTUATOR | 1 | $4.40 | |
| 45 | 2602-338 | WASHER,THRUST-12MM X 26MM X 1MM | 1 | $2.75 | |
| 46 | 2602-275 | GEAR, REVERSE IDLER-30T | 1 | $93.95 | |
| 47 | 2602-415 | SNUBBER,RUBBER-REVERSE IDLER | 1 | $1.78 | |
| 48 | 2602-342 | CHAIN,REXNORD-68P (11 WIDE) | 1 | $126.95 | |
| 49 | 1702-173 | IDLER,REV-W/BRG ASSY | 1 | $55.95 | |
| 50 | 2602-337 | BEARING-12MM X 14MM X 10MM | 1 | $1.64 | |
| 51 | 2602-277 | SHAFT,REVERSE-12MM | 1 | $16.49 |
