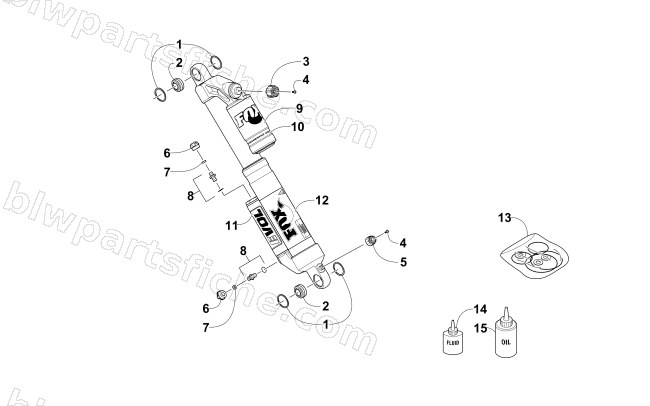

2016 Arctic Cat ZR 9000 RR 129 — FRONT SUSPENSION SHOCK ABSORBER
2016 ZR 9000 RR 129
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3703-344 | SHOCK,SKI-EVOL X-RH (RR) | 1 | $1,263.95 | |
| 0 | 3703-345 | SHOCK,SKI-EVOL X-LH (RR) | 1 | $1,263.95 | |
| 1 | 3604-147 | RETAINING RING,INTERNAL SPIRAL | 1 | $16.49 | |
| 2 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 3 | 3603-385 | KNOB,DAMPING ADJUST-LOW SPEED | 1 | $3.99 | |
| 4 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 5 | 3603-386 | KNOB,DAMPING ADJUST-REBOUND | 1 | $7.30 | |
| 6 | 3603-367 | CAP,VALVE-EVOL-BLACK | 1 | $3.99 | |
| 7 | 2603-965 | SEAL,CAP-EVOL AIR VALVE-.296"ODX.125"ID | 1 | $1.64 | |
| 8 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 9 | 3603-378 | DECAL,RESERVOIR-PERFORMANCE SERIES | 1 | $17.87 | |
| 10 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 11 | 3603-373 | DECAL,FLOAT X EVOL | 1 | $20.63 | |
| 12 | 3603-369 | DECAL,FLOAT 3-W/WARNINGS | 1 | $17.87 | |
| 13 | 3603-420 | KIT, REBUILD - FLOAT 3 - EVOL RC2 | 1 | $171.95 | |
| 14 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 15 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
