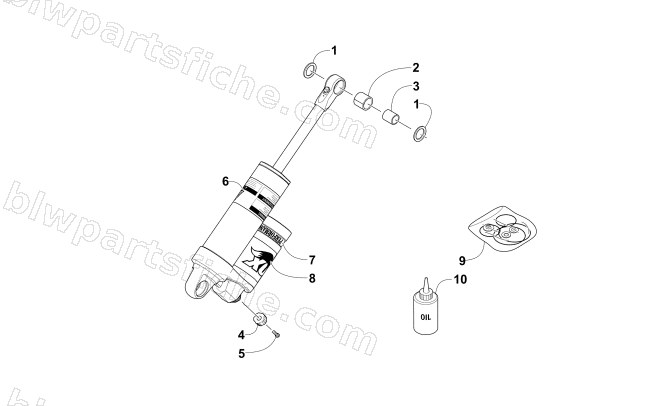

2016 Arctic Cat ZR 9000 RR 129 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2016 ZR 9000 RR 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-636 | SHOCK,REAR ARM-CROSS COUNTRY | 1 | $960.95 | |
| 1 | 4604-077 | EYELET PARTS,SPACER .621X.050 BLACK | 1 | $59.95 | |
| 2 | 3603-399 | BUSHING,EYELET-.403 ID X .621 OD X .740 | 1 | $35.95 | |
| 3 | 4604-076 | EYELET PARTS,SLEEVE 0.403X0.621X0.950 | 1 | $19.25 | |
| 4 | 3603-385 | KNOB,DAMPING ADJUST-LOW SPEED | 1 | $3.99 | |
| 5 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 6 | 3603-418 | DECAL BAND [4.4 X 1.5] WARNING SYMBOLS | 1 | $12.35 | |
| 7 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 8 | 3603-378 | DECAL,RESERVOIR-PERFORMANCE SERIES | 1 | $17.87 | |
| 9 | 4604-017 | KIT,REBUILD-SEAL/BEARING | 1 | $93.95 | |
| 10 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
