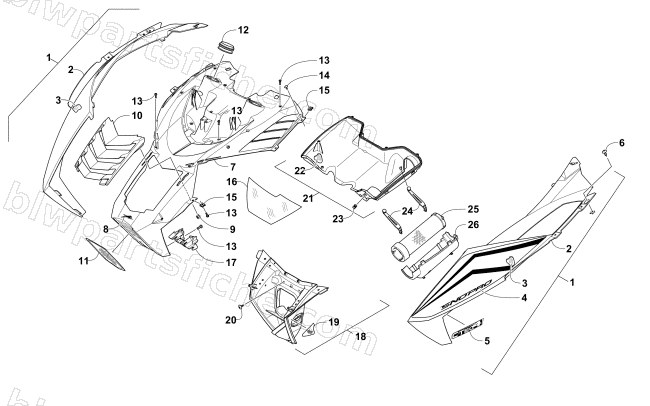

2016 Arctic Cat ZR 9000 SNO PRO 129 — HOOD AND AIR INTAKE ASSEMBLY
2016 ZR 9000 SNO PRO 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3718-620 | HOOD,W/FOIL-4 STRK RH-WHT | 1 | $144.95 | |
| 2 | 3718-621 | HOOD,W/FOIL-LH-WHT | 1 | $164.95 | |
| 3 | 6606-420 | FOIL,HOOD-RH | 1 | $3.02 | |
| 3 | 6606-415 | FOIL,PROTECTIVE-HOOD-LH | 1 | $4.40 | |
| 5 | 0621-993 | DECAL,HOOD-"CTEC4"-TA GRN | 1 | $4.40 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 9 | 1623-765 | CLIP,RETAINING-HOOD | 1 | $1.50 | |
| 10 | 6606-388 | GRILLE,INTERCOOLER-BLK | 1 | $24.77 | |
| 11 | 0608-696 | SCREEN,PLENUM | 1 | $20.63 | |
| 12 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 13 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 14 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 15 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 16 | 6606-421 | FOIL,INTAKE PLENUM-UPPER | 1 | $2.88 | |
| 17 | 6606-822 | RETAINER,LOWER PLENUM | 1 | $13.73 | |
| 18 | 5706-991 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(T) | 1 | $66.95 | |
| 19 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 20 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 21 | 5706-380 | PLENUM,INTAKE-LWR-REAR-W/FOIL | 1 | $70.95 | |
| 22 | 6606-422 | FOIL,INTAKE PLENUM-LOWER-TURBO | 1 | $5.51 | |
| 23 | 1623-023 | NUT,SPEED-#10-32 U TYPE | 1 | $1.50 | |
| 24 | 6606-392 | STRAP,HOLD-DOWN-RUBBER | 1 | $2.88 | |
| 25 | 2670-265 | FILTER,AIR (TURBO) | 1 | $45.95 | |
| 26 | 6606-365 | COVER,AIR FILTER | 1 | $29.95 |
