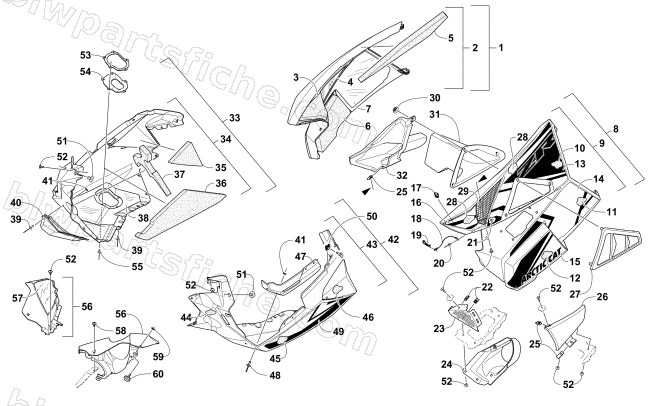

2016 Arctic Cat ZR 9000 SNO PRO 129 — SKID PLATE AND SIDE PANEL ASSEMBLY
2016 ZR 9000 SNO PRO 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3718-312 | PANEL,SIDE-RH WITH FOAM-BLK (4 STROKE) | 1 | $259.95 | |
| 9 | 4718-557 | PANEL,SIDE-LH-W/FOAM-BLK TURBO | 1 | $460.95 | |
| 10 | 0617-669 | FOAM,UPPER SIDE PANEL-REAR LH-4 STRK | 1 | $12.35 | |
| 11 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 12 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 13 | 2621-608 | DECAL,SIDE PANEL-UPR ORN RH | 1 | $50.95 | |
| 14 | 2621-606 | DECAL,SIDE PANEL-LWR ORN RH | 1 | $53.95 | |
| 14 | 2621-607 | DECAL,SIDE PANEL-LWR ORN LH | 1 | $53.95 | |
| 15 | 2621-614 | DECAL,SIDE PANEL-FWD ORN RH-"ARCTIC CAT" | 1 | $17.87 | |
| 15 | 2621-615 | DECAL,SIDE PANEL-FWD ORN LH-"A C" | 1 | $17.87 | |
| 16 | 2621-612 | DECAL,SIDE PANEL-UPR FWD ORN RH | 1 | $5.09 | |
| 16 | 2621-613 | DECAL,SIDE PANEL-UPR FWD ORN LH | 1 | $5.09 | |
| 17 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 18 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 19 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 20 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 21 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 22 | 1623-052 | NUT,U | 1 | $0.95 | |
| 23 | 6606-925 | SCREEN,INTAKE | 1 | $34.95 | |
| 24 | 2602-794 | DUCT,INTAKE-INNER | 1 | $27.95 | |
| 25 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 26 | 2602-793 | DUCT,INTAKE-OUTER-BLK | 1 | $19.25 | |
| 27 | 0608-648 | COVER,DUCT-HEAT-TURBO | 1 | $16.49 | |
| 28 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 29 | 5706-531 | SCREEN,SIDE PANEL-UPR LH-PTD BLK | 1 | $20.63 | |
| 30 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 31 | 0708-596 | DUCT,HEAT-TURBO-ROUTED | 1 | $62.95 | |
| 32 | 1702-367 | DUCT,BELT COOLING-4 STRK-ROUTED | 1 | $42.95 | |
| 34 | 3718-422 | PLATE,SKID-RH-W/FOAM | 1 | $192.95 | |
| 43 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 48 | 8061-688 | RIVET,BLIND-LF SS66 ZINC | 1 | $0.95 | |
| 49 | 2621-620 | DECAL,SKID PLATE-FWD ORN RH | 1 | $22.01 | |
| 49 | 2621-621 | DECAL,SKID PLATE-FWD ORN LH | 1 | $22.01 | |
| 50 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 51 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 52 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 53 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 54 | 2612-799 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $17.87 | |
| 55 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 56 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 56 | 6606-351 | PANEL,FILLER-LH-TURBO-BLK | 1 | $67.95 | |
| 57 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 58 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 59 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 60 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
