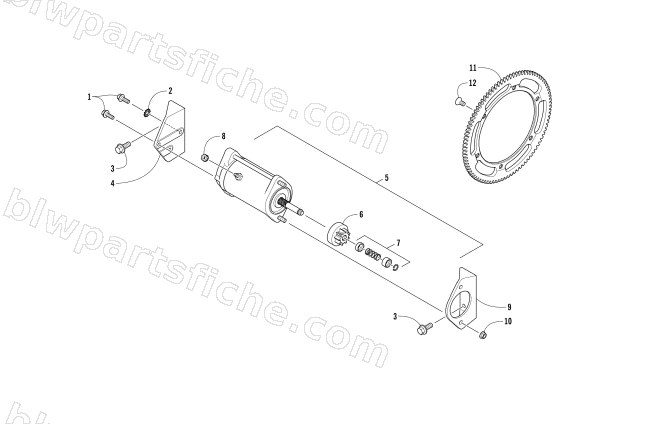

2017 Arctic Cat BEARCAT 2000 LT — ELECTRIC START - STARTER MOTOR ASSEMBLY
2017 BEARCAT 2000 LT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-621 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y W/2353 | 1 | $0.95 | |
| 2 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 3 | 1623-566 | SCREW,CAP-HFH 5/16-18 X0.875 G5 W/2353 | 1 | $1.64 | |
| 4 | 0645-728 | BRKT,MOUNTING-STARTER-RH | 1 | $20.63 | |
| 6 | 0645-713 | R/B 0645-853 | 1 | $159.95 | |
| 7 | 0745-398 | STOPPER,PINION-KIT | 1 | $43.95 | |
| 8 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 9 | 0645-729 | BRKT,MOUNTING-STARTER-LH | 1 | $20.63 | |
| 10 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 12 | 1623-821 | SCREW,MACH-TSFH M8X1.25X14 CL10.9Z&Y | 1 | $8.21 |
