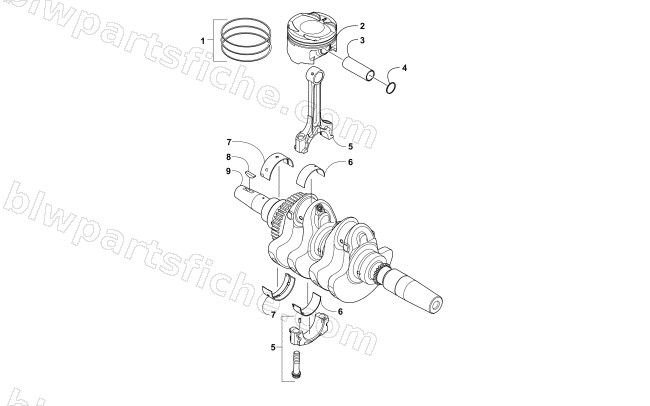

2017 Arctic Cat BEARCAT 3000 LT EARLY BUILD — CRANKSHAFT AND PISTON ASSEMBLY
2017 BEARCAT 3000 LT EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-992 | RING SET PISTON | 1 | $79.95 | |
| 2 | 3306-993 | PISTON | 1 | $156.95 | |
| 3 | 3306-994 | PIN PISTON | 1 | $16.49 | |
| 4 | 3307-009 | CLIP PISTON PIN | 1 | $3.02 | |
| 5 | 3306-995 | CONN ROD ASSY | 1 | $156.95 | |
| 6 | 3306-996 | BEARING CONN ROD-RED (1.495-1.498) | 1 | $26.95 | |
| 7 | 3307-011 | BRG CRANK SHAFT-RED (A) | 1 | $30.95 | |
| 8 | 0829-039 | KEY WAY ACG | 1 | $3.57 | |
| 9 | 3307-008 | CRANK SHAFT COMP | 1 | $1,110.95 |
