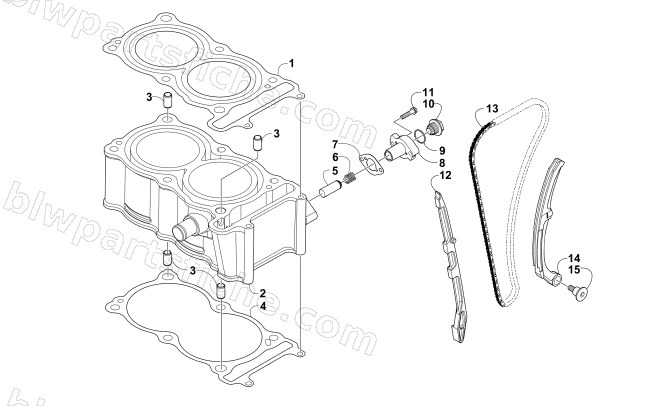

CYLINDER AND TIMING CHAIN ASSEMBLY
2017 BEARCAT 3000 LT EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-929 | SEAL HEAD COVER | 1 | $86.95 | |
| 2 | 3306-990 | CYLINDER COMP | 1 | $477.95 | |
| 3 | 0829-046 | PIN,DOWEL | 1 | $3.44 | |
| 4 | 3306-991 | GASKET CYLINDER | 1 | $47.95 | |
| 5 | 3307-004 | CHAIN TENSIONER | 1 | $169.95 | |
| 6 | 3307-001 | SPRING OIL TENSIONER | 1 | $1.64 | |
| 7 | 3306-999 | GASKET TENSIONER LIFTER | 1 | $30.95 | |
| 8 | 3307-002 | CASE ASM LIFTER TENSIONER | 1 | $30.95 | |
| 9 | 3307-007 | WASHER 28*18.2*1 | 1 | $5.09 | |
| 10 | 3307-006 | BOLT SPECIAL M18*1.0 | 1 | $5.09 | |
| 11 | 3303-385 | BOLT FLANGE SH 6*28 | 1 | $0.81 | |
| 12 | 3307-005 | GUIDE COMP CAM CHAIN | 1 | $30.95 | |
| 13 | 3306-997 | CHAIN CAM | 1 | $79.95 | |
| 14 | 3306-998 | TENSIONER, CAM CHAIN | 1 | $79.95 | |
| 15 | 3307-003 | PIVOT TENSION GUIDE 8*30 | 1 | $5.51 |
