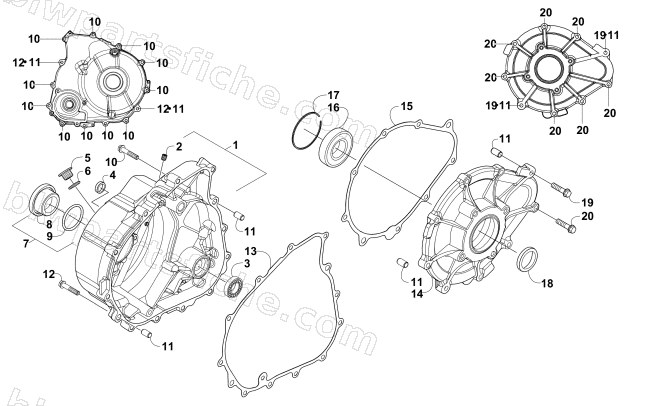

2017 Arctic Cat BEARCAT 3000 LT EARLY BUILD — MAGNETO AND PTO COVERS
2017 BEARCAT 3000 LT EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-976 | COVER ASSY R CRANK CASE | 1 | $156.95 | |
| 2 | 3304-065 | CONE TYPE PLUG 6*7 | 1 | $1.37 | |
| 3 | 3306-977 | BEARING RADIAL BALL 6001 | 1 | $16.49 | |
| 4 | 0830-207 | OIL SEAL 13.7*24*5 | 1 | $4.26 | |
| 5 | 3304-012 | CAP ACG A.C.G. | 1 | $3.30 | |
| 6 | 3304-099 | O-RING 13.8*2.5 | 1 | $2.33 | |
| 7 | 0812-087 | CAP ASSY (INCLUDES O-RING 0835-016) | 1 | $13.73 | |
| 8 | 0812-088 | CAP,30MM | 1 | $13.73 | |
| 9 | 0835-016 | O-RING 27.4*2.4 | 1 | $1.50 | |
| 10 | 0826-136 | BOLT,M6X1.0X30 | 1 | $0.85 | |
| 11 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 12 | 3303-386 | BOLT FLANGE SH 6*35 | 1 | $2.06 | |
| 13 | 3306-912 | GASKET R COVER | 1 | $17.87 | |
| 14 | 3306-793 | COVER LEFT CRANKCASE | 1 | $79.95 | |
| 15 | 3306-913 | GASKET L COVER | 1 | $20.63 | |
| 16 | 0832-087 | BEARING RADIAL BALL 6207-9C3 | 1 | $66.95 | |
| 17 | 3307-037 | CIR CLIP IN 72 | 1 | $5.92 | |
| 18 | 3307-034 | OIL SEAL 35*47*7 | 1 | $20.63 | |
| 19 | 3305-945 | BOLT FLANGE SH 6X32 | 1 | $1.50 | |
| 20 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 |
