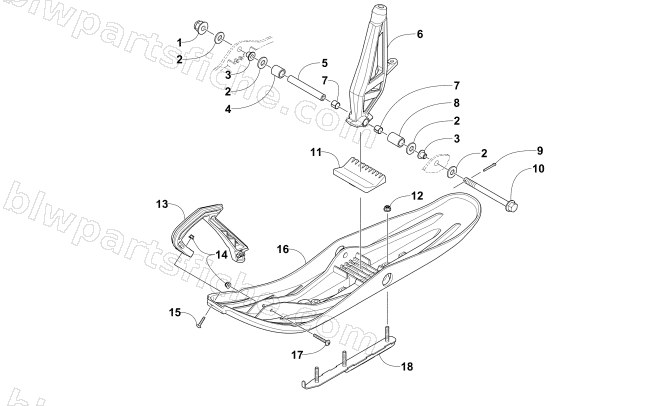

2017 Arctic Cat BEARCAT 3000 LT EARLY BUILD — SKI AND SPINDLE ASSEMBLY
2017 BEARCAT 3000 LT EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 2 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 3 | 2603-746 | INSERT, SKI - 10 MM | 1 | $2.47 | |
| 4 | 2603-731 | SPACER, SPINDLE-31.75 MM (1.25") | 1 | $6.75 | |
| 5 | 2603-730 | AXLE, SPINDLE-138.68 MM (5.46") | 1 | $38.95 | |
| 6 | 3703-190 | SPINDLE,RH-BLK-FABR | 1 | $320.95 | |
| 6 | 3703-191 | SPINDLE,LH-BLK-FABR | 1 | $320.95 | |
| 7 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 8 | 3603-303 | SPACER,SPINDLE-19.177 ID X 44.25mm LG | 1 | $12.35 | |
| 9 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 10 | 1623-718 | BOLT, SKI-HFH M 10 - 1.25 X 200 CL10.9 | 1 | $13.73 | |
| 11 | 3603-302 | DAMPER,SKI-8" | 1 | $22.01 | |
| 12 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 13 | 2603-950 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 16 | 3603-363 | SKI,PLASTIC-202MM(8IN) | 1 | $126.95 | |
| 17 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 |
